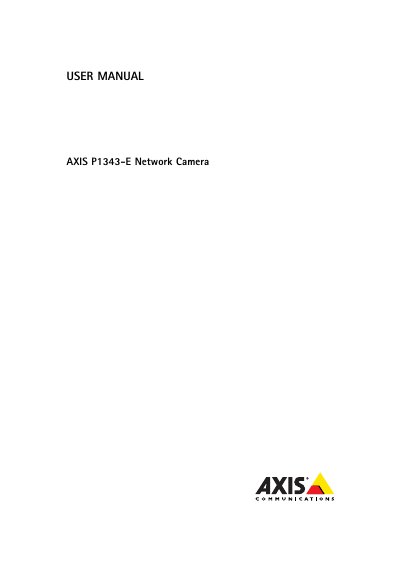

Axis P1343-E Network Camera User Manual
This manual covers the Axis P1343‑E network camera, a PoE‑powered security camera with varifocal lens, audio I/O, and SD‑card storage. It includes hardware overview, connector details, LED indicators, and safety information.
Key sections describe network setup, video and audio streaming, digital PTZ, security features, power specifications, and troubleshooting. Technical specifications, performance considerations, and optional accessories are also provided.
AXIS P1343 specifications
| Image sensor | Progressive scan RGB CMOS 1/4" |
|---|---|
| Lens | Varifocal f=3–8 mm, F1.0, DC‑Iris, CS mount |
| Horizontal angle of view | 61° – 21° |
| Minimum illumination (color) | 0.2 lux, F1.0 |
| Maximum resolution | 800x600 (SVGA) to 160x90 |
| Frame rate (H.264) | 30 fps in all resolutions |
| Power | PoE IEEE 802.3af, max 12.95 W or High PoE max 25.5 W |
| Dimensions (HxWxD) | 87/120 mm × 140/161 mm × 404 mm |
| Weight | 3.1 kg (6.8 lb.) |
All AXIS P1343 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How do I connect the camera to the network?
Use the RJ‑45 Ethernet connector with Power over Ethernet (PoE) and a shielded STP cable.
What type of storage can be used for local recording?
A standard or high‑capacity SD card (not included) can be inserted in the SD card slot.
How can I connect the camera to the network?
Use the RJ‑45 Ethernet connector with a shielded (STP) cable; the camera supports Power over Ethernet (PoE) and will work with a PoE‑enabled switch.
What type of battery does the Axis P13 series use?
The cameras use a 3.0 V CR2032 lithium battery to power the internal real‑time clock.
How can I assign an IP address to the camera?
You can let a DHCP server assign an address automatically, or set a static address using the AXIS IP Utility for single cameras or AXIS Camera Management for multiple cameras.
