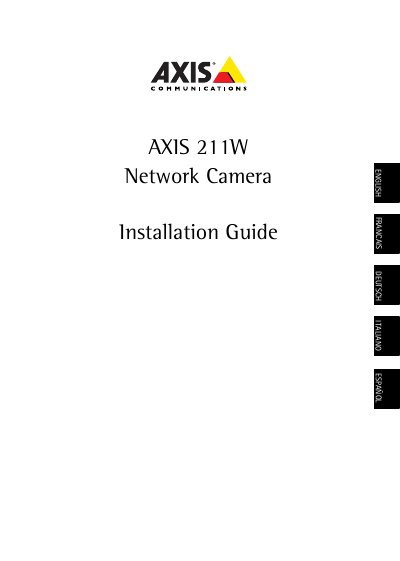

This installation guide provides instructions for installing the AXIS 211W Network Camera on your network
This guide walks you through installing the AXIS 211W network camera. It starts with checking the package contents, reviewing the hardware dimensions and indicators, and mounting the antenna. Subsequent sections describe connecting the camera to a network, assigning an IP address (via DHCP or static configuration), setting the root password, and configuring wireless settings.
Additional chapters cover adjusting the focus, interpreting LED status indicators, using the supplied power options (including PoE and external supply), and resetting the device to factory defaults. The guide also lists connector types and pin assignments for audio, video, and I/O functions.
| Dimensions | 38 × 88 × 180 mm |
|---|---|
| Weight | 260 g (without antenna) |
| Power Input (external) | 7‑20 V DC, max 5 W |
| Power Output (aux) | 5 V DC, max 100 mA |
| Antenna Connector | Reverse‑polarity SMA |
| Network Connector | Ethernet RJ‑45 |
| Audio Input | 3.5 mm mono microphone or line |
| Audio Output | 3.5 mm line‑level stereo |
