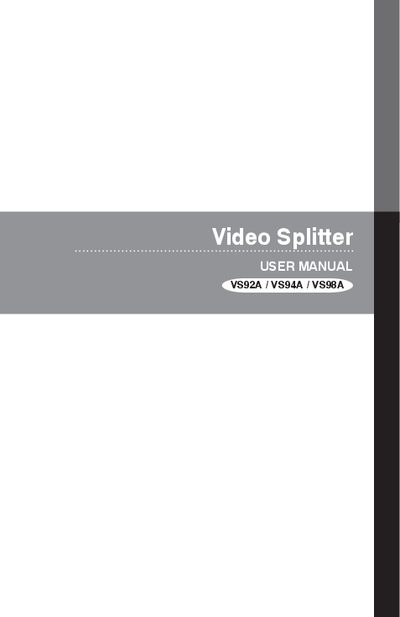

This is a user manual for a video splitter, which introduces the product's functions and features, installation and usage methods, etc.
The VS92A, VS94A, and VS98A are video splitters that duplicate an analog video source to 2, 4, or 8 outputs respectively. They boost the signal for distances up to 65 m and support VGA, SVGA, and Multisync monitors. The units are metal‑housing, daisy‑chainable, and designed for public broadcasting, remote monitoring, and classroom training.
Installation can be performed as a single‑stage setup using HDB‑15 extender cables, or multiple splitters can be daisy‑chained to expand the number of displays. The manual provides wiring diagrams, power‑up procedures, and safety information such as FCC compliance and RoHS certification.
| Video Input Connectors | 1 x HDB-15 (Male) |
|---|---|
| Video Output Connectors (per model) | VS92A: 2, VS94A: 4, VS98A: 8 |
| Bandwidth | VS92A/VS94A: 250 MHz, VS98A: 200 MHz |
| Maximum Cable Distance | 65 m (213 ft) |
| Power Consumption (max) | VS92A: 0.85 W, VS94A: 2.43 W, VS98A: 3.6 W |
| Power Adapter | DC 9 V |
| Weight | VS92A: 0.32 kg, VS94A: 0.45 kg, VS98A: 0.53 kg |
| Dimensions (L×W×H) | VS92A: 13.00×7.50×4.50 cm, VS94A: 20.00×7.50×4.50 cm |
The VS92A provides 2 outputs, the VS94A provides 4 outputs, and the VS98A provides 8 outputs.
The splitters can transmit video up to 65 m (213 ft) from the device to the monitor.
Yes, the product is RoHS compliant.
