Key facts
- Brand
- ASUS
- Model
- M2N-E
- Category
- Motherboard
- Industry
- Computers
- Documents
- 4
- Languages
- EN · ZH
- Last added
- 2012-05-04
Start here

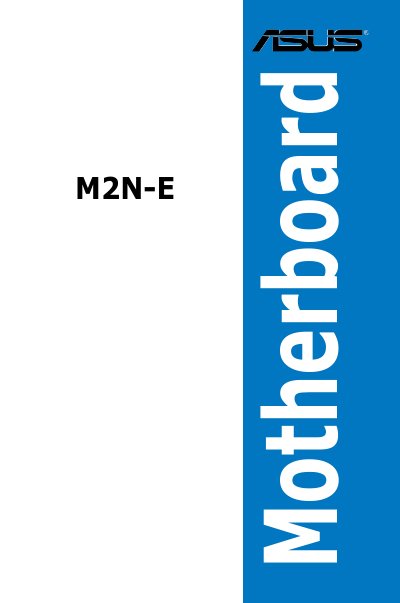

ASUS M2N-E Motherboard User Manual
This manual introduces the ASUS M2N-E motherboard, detailing its package contents, special features, and hardware layout including CPU, memory, expansion slots, and connectors. It also includes a specifications summary and safety information for proper handling.
The guide covers powering up the system, BIOS setup with utilities such as ASUS EZ Flash, and software support including RAID driver creation, operating system installation, and utility tools. FCC and Canadian compliance statements are provided along with troubleshooting and contact information.
ASUS M2N-E specifications
| PCI Express x1 slot | Present |
|---|---|
| PCI Express x16 slots | Present |
| SATA ports | SATA1,2,3,4,5,6 |
| CPU socket | Central Processing Unit (CPU) |
| System memory slots | DIMM slots for installing memory modules |
All ASUS M2N-E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is required to create a RAID driver disk?
A floppy disk with the RAID driver is required, and you must use the Make Disk utility from the motherboard support CD to write the driver to the floppy.
What safety precaution should be taken before installing the motherboard?
Disconnect the power cable from the electrical outlet before relocating or installing the motherboard, and read all manuals that came with the package.
What CPU socket does the M2N‑E motherboard use?
It uses a Socket AM2.
How many USB ports are supported?
The board supports up to ten USB 2.0/1.1 ports.
How can I update the BIOS on the M2N‑E board?
Use the ASUS EZ Flash 2 utility from the BIOS menu or the AwardBIOS Flash utility to load a BIOS image and update the firmware.
