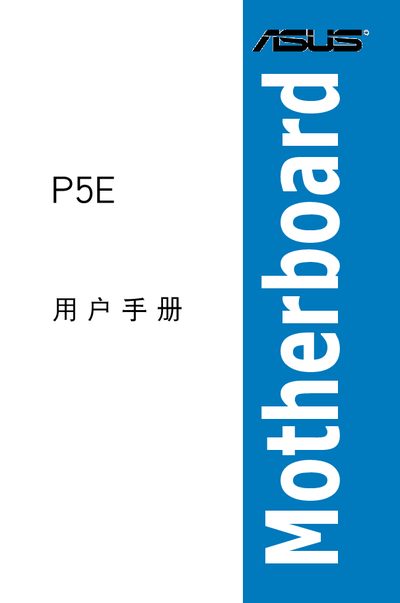

ASUS P5E Motherboard User Manual
This manual covers safety guidelines, hardware installation steps, and detailed configuration of the ASUS P5E motherboard. It includes sections on CPU and memory installation, PCI/PCI‑Express slot usage, and BIOS menu navigation.
Additional chapters describe RAID support, ATI CrossFire technology, and software utilities such as EZ Flash 2, AI Tweaker, and the ASUS suite of drivers. The document also provides troubleshooting advice and warranty information. This manual is written in Chinese.
ASUS P5E specifications
| Supported CPU | Intel Pentium 4 LGA775 processors with Hyper‑Threading Technology |
|---|---|
| Hyper‑Threading support | Enabled via BIOS for supported operating systems |
| SATA / PATA ports | SATA 1‑6; PATA Primary Master/Slave |
| ACPI version | ACPI 2.0 (configurable in BIOS) |
All ASUS P5E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What actions can void the ASUS warranty?
Warranty is void if the product is repaired, modified, or altered without written permission from ASUS, or if the serial number is defaced or missing.
How do I enable Hyper‑Threading Technology on this motherboard?
Install an Intel Pentium 4 CPU that supports Hyper‑Threading, enter the BIOS Setup, set the Hyper‑Threading item to Enabled, and restart the computer.
How do I install the CPU on the P5E motherboard?
Install the central processor according to section 2.3.1 "安装中央外理器".
How can I configure BIOS settings?
Use the BIOS menus described in section 4.3, such as Main Menu, Advanced menu, and AI Tweaker.
What safety steps should be taken before installing the motherboard?
Unplug the computer’s power cord, ensure all power and data cables are disconnected before handling any hardware, and avoid static discharge.
Which CPU socket does the P5E-VM HDMI motherboard use?
The motherboard uses an Intel LGA775 socket.
