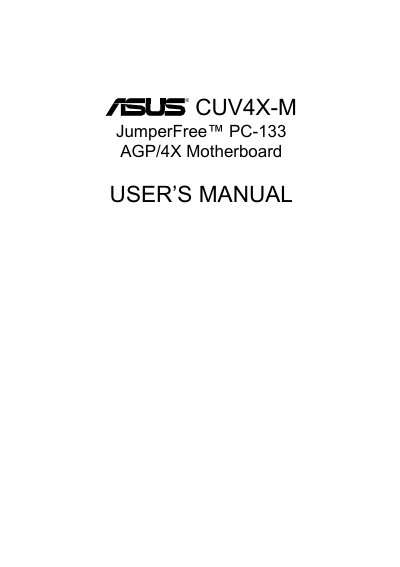

ASUS CUV4X-M Motherboard User Manual
The ASUS CUV4X-M motherboard user manual guides users through hardware installation, BIOS configuration, and software setup. It includes an introduction, feature overview, hardware setup steps, BIOS setup options, and software installation instructions.
Technical specifications such as supported processors, chipset details, memory capacity, and expansion options are detailed, along with FCC and Canadian compliance statements.
ASUS CUV4X specifications
| Supported CPUs | Intel Pentium® II 133MHz FSB Coppermine core FC-PGA, Intel Pentium® II 100MHz FSB Coppermine core FC-PGA, Intel Celeron™ 100MHz FSB Mendocino core PPGA, VIA Cyrix® TI 133MHz FSB PPGA |
|---|---|
| North Bridge Chipset | VIA VT82C694X system controller or VIA Apollo Pro133A PCI‑to‑ISA bridge |
| South Bridge Chipset | VIA VT82C686A PCI set with PCI Super I/O integrated controller |
| Memory Slots | Four DIMM sockets supporting PC133/PC100, VC SDRAM and HSDRAM up to 1.5 GB |
| JumperFree™ Mode | Processor settings and overclocking via DIP switches in BIOS |
| AGP Pro Slot | Supports AGP/AGP Pro cards, 133 MHz 4X mode |
| UltraDMA Support | Onboard PCI Bus Master IDE controller supports UltraDMA/66 and UltraDMA/33 |
| USB Ports | Four USB ports |
All ASUS CUV4X documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPUs are compatible with the ASUS CUV4X-M motherboard?
The board supports Intel Pentium II 133 MHz and 100 MHz Coppermine cores, Intel Celeron 100 MHz Mendocino, and VIA Cyrix TI 133 MHz processors.
How can I overclock the processor on the CUV4X-M?
Enable JumperFree™ mode and use the DIP switches in the BIOS to adjust the external frequency and Vcore voltage.
