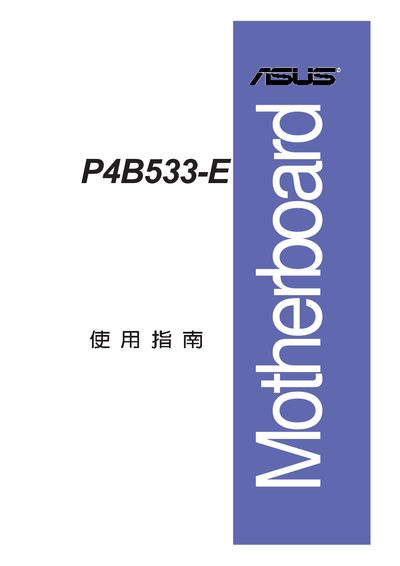

ASUS P4B533-E Motherboard User Manual
This manual covers the complete setup of the ASUS P4B533-E motherboard, including hardware installation, power‑on procedures, and BIOS configuration. Detailed safety guidelines are provided to protect both the user and the equipment during installation and maintenance.
Additional sections describe supported software utilities, driver installation, and terminology definitions, helping users fully utilize the motherboard’s features such as UltraDMA, UART, and RAID configurations. This manual is written in Chinese.
ASUS P4B specifications
| CPU Socket | Socket 478 for Intel Pentium 4 / Celeron processors |
|---|---|
| Northbridge Chipset | Intel 845GV |
| Southbridge Chipset | Intel ICH4 (FW82801DB) |
| Memory Slots | 2 x 184‑pin DDR DIMM sockets, up to 2 GB PC2700/2100 |
| Expansion Slots | 3 x PCI slots |
| Storage Interface | 2 x UltraDMA 100/66 |
| Audio Codec | Realtek ALC655 6‑channel CODEC, S/PDIF‑In/Out |
| LAN Controller | Realtek 8101L integrated 10/100 Mbps |
| USB Ports | Maximum six USB 2.0 ports |
| Rear Panel Connectors | Parallel, Serial, VGA, PS/2, RJ‑45, 4 x USB 2.0 |
