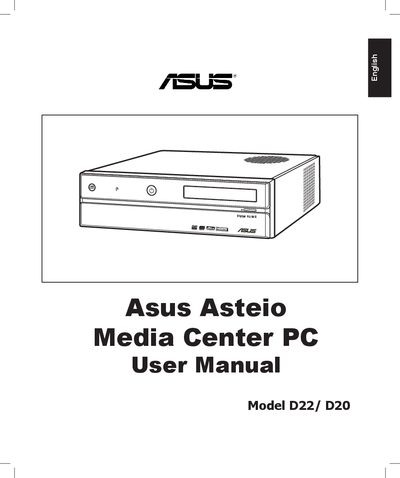

Asus D22/D20 Media Center PC User Manual
This manual introduces the Asus Asteio Media Center PC, describing its hardware features, operating system (Windows XP Media Center Edition), and the remote‑control based entertainment functions. It guides users through safe installation, connection of TV signals, peripheral setup, and basic operation of the media center software.
The document also lists the technical specifications of the D22/D20 models, including CPU, memory, storage, graphics, I/O ports, and dimensions, helping users understand the capabilities and requirements of the system.
ASUS D20 specifications
| CPU | Intel Conroe E6300 1.86 GHz |
|---|---|
| Graphics | NVIDIA nForce4 7600 series / Intel GMA X3000 |
| Memory | 1 GB DDR2 533 (2 × 512 MB) dual‑channel |
| Hard Drive | 250 GB SATA2 7200 rpm (or 160 GB SATA2 7200 rpm) |
| Optical Drive | 16× DVD Dual Super‑Multi DL |
| Wireless LAN | 802.11b/g |
| LAN | 10/100/1000 Mbps Ethernet |
| Power Supply | 275 W (PFC) |
| Dimensions | 357 mm W × 95 mm H × 398 mm D |
All ASUS D20 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many USB ports are available on the front panel?
The front panel provides two USB 2.0 ports.
What operating system is pre‑installed on the Media Center PC?
The system ships with Microsoft Windows XP Media Center Edition.
