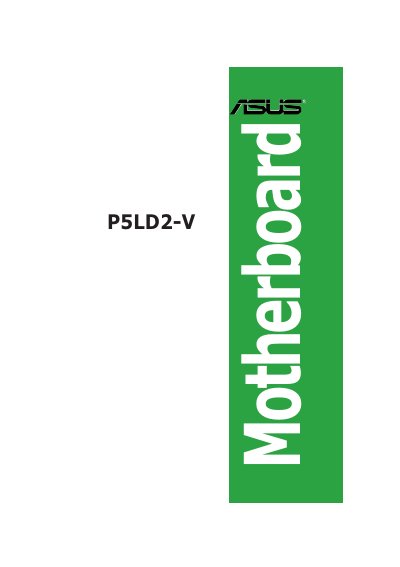

ASUS P5LD2-V Motherboard User Manual
This manual covers the ASUS P5LD2‑V motherboard, detailing its hardware components, installation procedures, and BIOS setup. It includes safety information, power‑up instructions, and guidance for installing operating systems and drivers.
Additional sections describe FCC and Canadian compliance, CPU features such as Intel Hyper‑Threading, and troubleshooting tips. The document is organized with a table of contents, hardware overview, BIOS menus, and appendices for advanced features.
ASUS P5LD2-V specifications
| CPU socket | LGA775 |
|---|---|
| Supported CPU | Intel Pentium 4 |
| Expansion slot type | PCI Express x1 |
| Expansion slot type | PCI Express x16 |
| Expansion slot type | PCI |
All ASUS P5LD2-V documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What should you do before connecting or removing signal cables?
Make sure that all power cables are unplugged before you connect or remove any signal cables.
What FCC compliance does the device have?
The device complies with Part 15 of the FCC Rules and is classified as a Class B digital device.
How can I update the BIOS on this board?
Use the Flash Update utility (F1ash) from within the BIOS to load the new BIOS file and apply the update.
How do I enable Hyper‑Threading on the P5LD2‑VM motherboard?
Enter the BIOS setup, go to the advanced options, set the Hyper‑Threading Technology option to Enabled, save the changes and restart the computer.
How can I change the jumper settings on the P5LD2-VM SE board?
Refer to the Jumper Mode diagram (e.g., Jumpcr Mode) on page 8 and set the pins according to the desired configuration.
