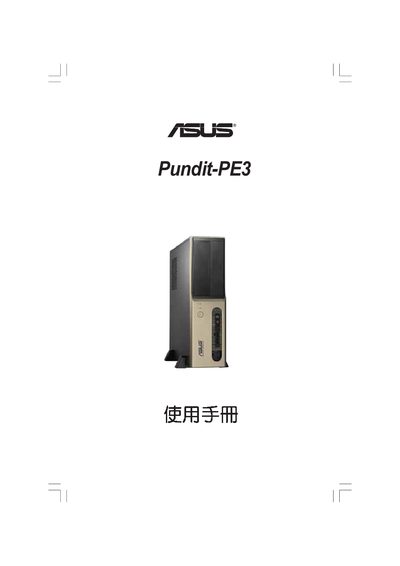

ASUS Pundit-PE3 User Manual
User Manual 104 pages · 3.1 MB · ZH
This manual covers the Pundit-PE3 system, describing its hardware components, installation steps, and initial configuration. It includes detailed guidance on assembling the chassis, connecting power and peripheral cables, and preparing the system for first use.
Later sections explain motherboard layout, jumper settings, and BIOS configuration options, with safety notices and troubleshooting tips for proper operation. This manual is written in Chinese.
ASUS PE3 specifications
| USB 2.0 interface | Present |
|---|---|
| 4‑pin IEEE 1394a interface | Present |
| CompactFlash slot | Present |
| Secure Digital / Multimedia Card slot | Present |
| SmartMedia slot | Present |
| LAN (RJ‑45) port | Present |
| PCI Express x1 slot | Present |
| PCI Express x16 slot | Present |
| CPU socket type | LGA775 |
| DIMM slots | Present |
All ASUS PE3 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Installation Guide 1
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What type of CPU socket does the motherboard use?
The motherboard uses an LGA775 CPU socket.
