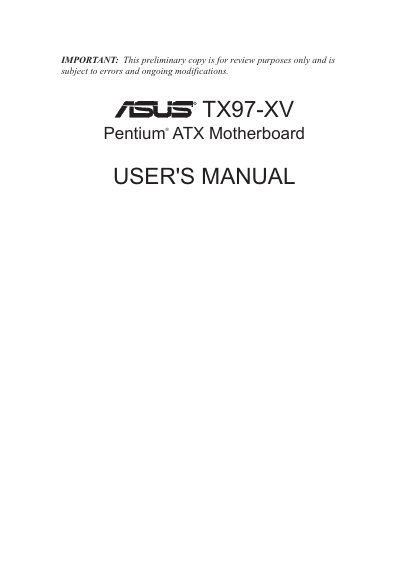

ASUS TX97-XV Motherboard User Manual
This manual covers the ASUS TX97-XV ATX motherboard, detailing its features, hardware specifications, and supported CPUs. It includes step‑by‑step installation guidance, jumper settings, and connector descriptions.
Additional sections describe BIOS configuration, support software utilities, operating‑system driver installation, FCC compliance, and troubleshooting procedures for common hardware errors.
ASUS TX97-X specifications
| Chipset | Intel 430TX |
|---|---|
| Expansion Slots | Four 16‑bit ISA slots, four 32‑bit PCI slots |
| Level‑2 Cache | 512 KB pipelined burst SRAM |
All ASUS TX97-X documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many PCI and ISA slots does the board provide?
The motherboard provides four 32‑bit PCI slots and four 16‑bit ISA slots.
What is the size of the Level‑2 cache on the TX97‑XE?
The board includes a 512 KB pipelined burst SRAM Level‑2 cache.
How many memory modules can be installed at the same time?
The board can use either the two DIMM slots or the four SIMM slots, but not both simultaneously.
What expansion slots are available on the TX97‑XE?
The motherboard provides four 16‑bit ISA slots and four 32‑bit PCI slots.
What should I do if the monitor becomes unreadable while adjusting settings?
Press the ESC key to return to the previous monitor settings.
How can I fix a DAC LUT test failure?
The error is visible on the top color bar of any 8 bpp mode; verify the DAC Look‑Up Table and replace the board if the problem persists.
