Key facts
- Brand
- ASUS
- Model
- AH2
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-20
Start here

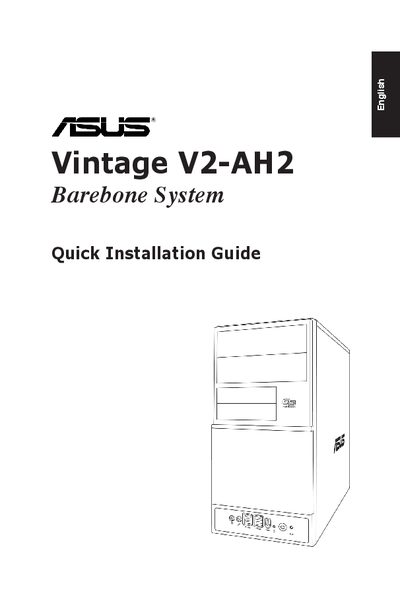

ASUS Vintage V2-AH2 Quick Installation Guide
This guide walks you through the physical installation of the ASUS Vintage V2‑AH2 barebone system, covering front and rear panel features, voltage selector settings, and step‑by‑step procedures for installing the CPU, CPU fan, DIMM modules, expansion cards and storage drives.
It also includes instructions for removing and re‑installing side covers, front panel assemblies, and drive‑bay covers, with safety cautions and connector details for both SATA and IDE drives.
ASUS AH2 specifications
| Voltage selector | 115 V / 230 V |
|---|---|
| 5.25‑inch drive bay | present |
| 3.5‑inch drive bay | present |
All ASUS AH2 documents by type
The shortest path to a working setup, usually only a few pages.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How are SATA and IDE hard drives connected?
For SATA drives, connect the SATA signal and power plugs; for IDE drives, connect the IDE signal and power plugs to the back of the drive.
How many USB ports does the T2‑AH1/AH2 have?
The system provides six USB 2.0 ports.
From: ASUS T2-AH1/AH2 Barebone System Quick Installation Guide
What voltage settings are available on the power supply?
The PSU includes a selector switch for 115 V or 230 V.
From: ASUS T2-AH1/AH2 Barebone System Quick Installation Guide
