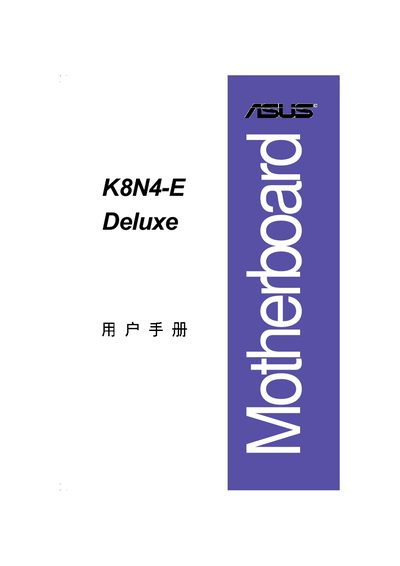

ASUS K8N4-E User Manual
This manual provides detailed instructions for installing and configuring the ASUS K8N4‑E Deluxe motherboard. It covers safety precautions, hardware overview, BIOS configuration, and supported utilities.
The document is organized into chapters covering product overview, installation steps, BIOS settings, and support information, helping users set up the board correctly and safely. This manual is written in Japanese.
ASUS SK8N specifications
| CPU Socket | Socket 940 for AMD Athlon™ 64 FX and AMD Opteron™ processors |
|---|---|
| Chipset | nForce 3 Pro150 |
| Memory Slots | 4 x 184‑pin DDR DIMM sockets, up to 8 GB |
| Expansion Slots | 1 x AGP 8X/4X, 5 x PCI |
| SATA Connectors | 2 x SATA |
| Audio Controller | ALC 650 6‑channel audio controller |
| LAN PHY | Realtek RTL8201BL |
| USB Ports | 4 x USB 2.0 (plus 2 additional via connectors) |
All ASUS SK8N documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What should be done before removing or adding hardware components?
Power must be turned off and all data cables should be disconnected before handling any hardware.
From: ASUS K8N4-E User Manual
What safety precautions are recommended when handling the motherboard?
Ensure the system is powered down, avoid static discharge, and use proper tools when installing or removing components.
From: ASUS K8N4-E User Manual
How do I access and configure the BIOS on the K8N4-E SE motherboard?
Press the DEL key during boot to enter the BIOS setup, then adjust settings as described in the BIOS chapter.
How do I launch the Cool ‘n’ Quiet!™ software?
Insert the motherboard support CD, install the Cool ‘n’ Quiet!™ software, then select ASUS > Cool & Quiet from the Start menu (Windows 2000) or All Programs > ASUS > Cool & Quiet (Windows XP).
What safety precautions should I take before installing the motherboard?
Disconnect all power cables from the outlet before relocating or adding devices, ensure power cables are unplugged before connecting signal cables, and avoid short circuits by keeping metal objects away from connectors and slots.
Is the product covered by warranty if the serial number is damaged?
No, the product is not covered by warranty if the serial number is damaged or unreadable.
