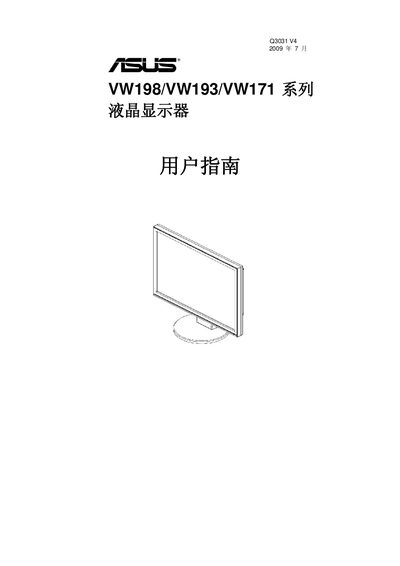

ASUS VW198/VW193/VW171 Series LCD User Manual
User Manual 20 pages · 781 KB · EN
This manual provides step‑by‑step instructions for setting up ASUS VW198, VW193, and VW171 LCD monitors. It covers safety precautions, hardware connections, and basic operation procedures.
The document also details OSD menu functions, supported display resolutions, and provides a troubleshooting guide for common issues.
ASUS VW193 specifications
| Panel type | TFTLCD |
|---|---|
| Screen size | 19.0" |
| Native resolution | 1440x900 @60Hz |
| Pixel pitch | 0.284 mm |
| Brightness | 300 cd/m² (Typ.) |
| Contrast ratio | 1000:1 (Typ.) |
| Viewing angle | 160°/160° |
| Color depth | 16.7 million colors |
| Response time | Sms (Tr+Tf) |
| Input connector | Analog 15‑Pin D‑Sub |
| Power supply | AC 100‑240 V |
| Operating power consumption | <42 W |
| Dimensions (W×H×D) | 444 mm × 364 mm × 210 mm |
| Weight | 43 kg |
Source: ASUS VW193D Display Manual
All ASUS VW193 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Other documents 1
Questions answered in these manuals
What is the native resolution of the ASUS VW193D?
The monitor’s native resolution is 1440 × 900 at 60 Hz.
What warranty does the ASUS VW193D include?
It comes with a three‑year full warranty covering the panel and on‑site service.
What is the required power source for the monitor?
The monitor operates from a universal AC power source of 100 V to 240 V.
