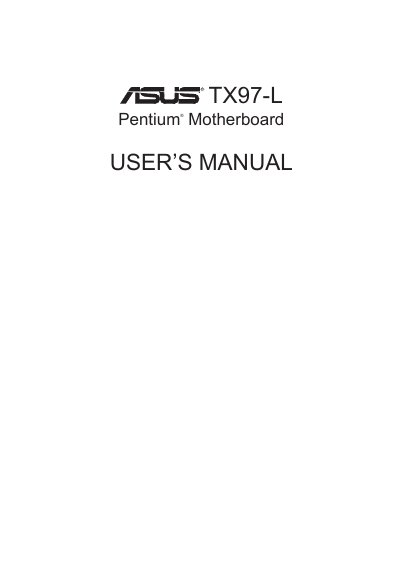

ASUS TX97-L Motherboard User Manual
This manual covers the ASUS TX97-L motherboard, detailing its specifications, supported CPUs, memory configurations, and optional expansion cards. It includes safety notices, FCC compliance, and contact information for ASUS worldwide support.
The guide walks users through hardware installation, jumper settings, BIOS configuration, and the use of optional components such as the ASUS PCI‑SC200 SCSI card and the PCI‑L101 Fast Ethernet LAN card, including Wake‑On‑LAN setup.
ASUS TX97-L specifications
| Chipset | Intel 430TX |
|---|---|
| Supported CPUs | Intel Pentium 75‑233 MHz, IBM/Cyrix 6x86‑PR 166+, AMD K5/K6 |
| Memory support | 3 DIMM sockets, 8‑256 MB 168‑pin 3.3 V SDRAM/EDO |
| Power supply | Dual AT and ATX connectors |
| Expansion slots | 3 ISA (16‑bit) and 4 PCI (32‑bit) slots |
| I/O ports | 2 UART serial ports, 1 parallel port (EPP/ECP) |
| Level‑2 cache | 512 KB pipelined burst SRAM |
| Wake‑On‑LAN support | Supported on ASUS PCI‑L101 Ethernet card |
All ASUS TX97-L documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is Wake‑On‑LAN?
Wake‑On‑LAN provides the capability to remotely power on systems by sending a wake‑up frame.
How many memory modules can the TX97‑L support?
The board supports up to three DIMM modules, for a total of 8‑256 MB of SDRAM/EDO memory.
What does Wake‑On‑LAN do?
Wake‑On‑LAN allows the system to be powered on remotely by sending a wake‑up frame.
What power supplies are supported by the TX97‑LE?
The board supports both AT and ATX power supplies via dual connectors.
