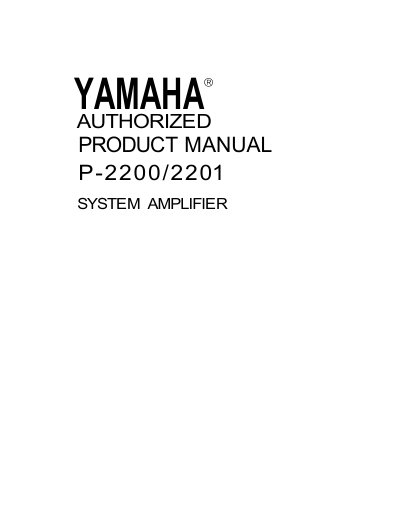

Yamaha P-2200/2201 System Amplifier Operating Manual
This operating manual provides comprehensive instructions for the Yamaha P-2200 and P-2201 system amplifiers. It covers scope, organization, brief operating instructions, detailed installation procedures, and various application scenarios such as bi-amplification and echo effects.
The document details the physical characteristics of the units, including front and rear panel controls like input attenuators, peak reading meters (on P-2200 only), thermal warning indicators, and power switches. It also explains connection methods for inputs and outputs, grounding concepts, protection circuits, and mechanical mounting considerations.
All Yamaha P-2201 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum power output of the amplifier into an 8-ohm load?
The P-2200 produces a maximum of 230 watts when driving an 8-ohm load.
What are the input impedance and voltage requirements for the U.S. model?
The amplifier requires a minimum of 117 VAC at 50 or 60 Hz, with an input impedance of 25k-ohms.
Does the P-2201 have peak reading meters?
No, the P-2201 is identical to the P-2200 except it does not include peak reading meters.
What input level produces the maximum 230 W output?
An input of +4 dB (1.23 V) produces the maximum 230 W output into an 8 Ω load.
