Start here

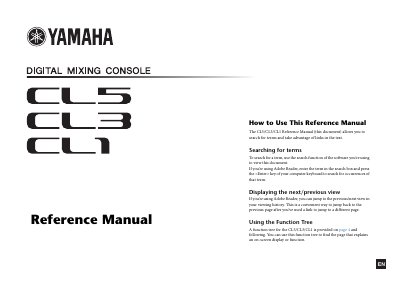

Yamaha CL5/CL3/CL1 Digital Mixing Console Reference Manual
This document serves as a reference guide for the Yamaha CL series of digital mixing consoles, specifically models CL5, CL3, and CL1. It provides detailed instructions on using the touch screen interface to control various mixer functions.
The manual covers operations within the SELECTED CHANNEL section for adjusting parameters like gain, EQ, dynamics, and sends. It also explains signal flow for input and output channels, including Dante audio network patching, I/O rack usage, and external head amp connections.
All Yamaha CL3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Can a two-space Premium Rack processor be mounted in an even-numbered rack?
No, a two-space Premium Rack processor (U76) can be mounted only in an odd-numbered rack.
From: Yamaha CL5/CL3/CL1 Firmware 1.02 Specification Additions Manual
What happens when the PATCHING indicator is lit?
When the PATCHING indicator is lit, a DANTE INPUT PATCH setting or an I/O RACK OUTPUT PATCH setting cannot be changed continuously.
From: Yamaha CL5/CL3/CL1 Firmware 1.02 Specification Additions Manual
What is the purpose of the SELECTED CHANNEL section?
This section allows you to manually adjust all major parameters for the currently-selected channel.
From: Yamaha CL5/CL3/CL1 Digital Mixing Console Reference Manual
How do I select a specific channel in the SELECTED CHANNEL section?
Press the [SEL] key corresponding to the INPUT, ST IN, STEREO, or MONO channel you want to control.
From: Yamaha CL5/CL3/CL1 Digital Mixing Console Reference Manual
What is the primary function of this device?
This product is a digital mixing console designed for audio signal processing and control.
From: Yamaha CL5/CL3/CL1 Digital Mixing Console Owner's Manual
Is there a risk of electric shock if the cover is removed?
Yes, removing the cover exposes dangerous voltage that can cause an electric shock to persons.
From: Yamaha CL5/CL3/CL1 Digital Mixing Console Owner's Manual
