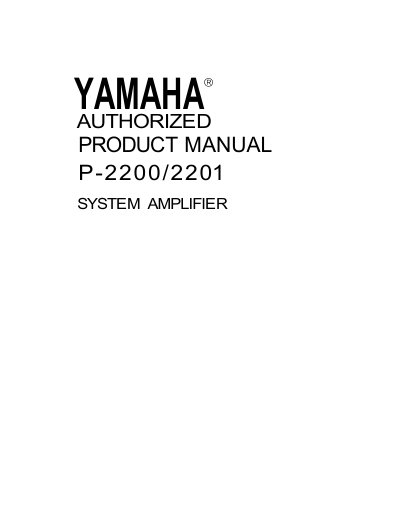

This document is the operating manual for the YAMAHA authorized product P-2200/2201 system amplifier. It describes the system design parameters, installation techniques, operation, and performance of the product.
The P-2200/2201 is a system‑oriented power amplifier designed for use with mixers, consoles, and speakers. This manual covers system design parameters, installation techniques, and detailed operation of the amplifier, including basic mathematical tools used in audio system design.
Key sections include brief operating instructions, extensive specifications with performance graphs, installation and detailed operation guidance, application wiring diagrams, and an appendix of technical definitions. The document also notes the differences between the P-2200 and the P-2201 model.
| Maximum Power Output | 230 W continuous average into 8 Ω, <0.05 % THD |
|---|---|
| Input Impedance | ≥25 kΩ (unbalanced) |
No, the P-2201 is identical to the P-2200 except it does not include peak reading meters.
An input of +4 dB (1.23 V) produces the maximum 230 W output into an 8 Ω load.
The rise time is 3.8 µs (10‑90 % of a 1 V @ 1 kHz square‑wave output).
