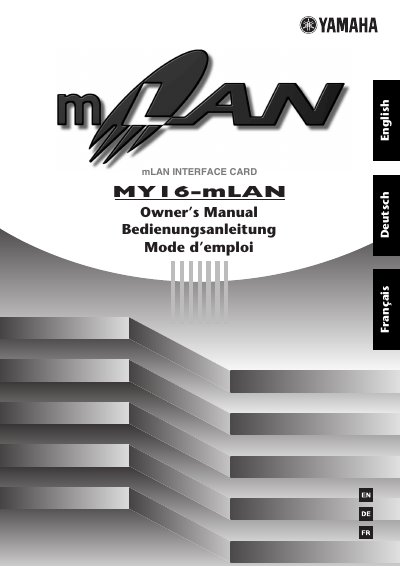

Yamaha MY16-mLAN Interface Card Owner's Manual
The Yamaha MY16-mLAN is an interface card designed for digital mixing consoles and production consoles. It features an mLAN interface, a digital network based on the IEEE1394 protocol, which simplifies the construction of sophisticated audio and MIDI networks without the need for extensive cabling reconfiguration. The card adds two mLAN connectors to compatible devices, enabling up to 16 channels of audio I/O and one MIDI I/O port.
Read onlineYamaha MY16-MLAN specifications
| Audio Channels | Up to 16-in and 16-out |
|---|---|
| MIDI Ports | 1-in and 1-out |
| Protocol Basis | IEEE1394 |
All Yamaha MY16-MLAN documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
Which devices are compatible with the MY16-mLAN?
The MY16-mLAN can be installed in the 01V, 01V96, 02R96, DM1000, and DM2000 digital mixing and production consoles.
What is the maximum audio channel count for the 01V?
When installed in the 01V, the maximum audio input/output is 8-in/8-out.
What operating systems are supported by the software included on the CD-ROM?
The CD-ROM contains software for Windows and Mac OS 9, but it does not include software for Macintosh or Mac OS X.
From: Yamaha i88X/mLAN16E MY16-mLAN Plug-in Effect Installation Guide
What specific precautions must be taken regarding power when installing the mLAN applications?
You must install the software while the power to the mLAN devices is off, then turn them on after the computer displays a message.
From: Yamaha i88X/mLAN16E MY16-mLAN Plug-in Effect Installation Guide
