Key facts
- Brand
- Yamaha
- Model
- MG12
- Category
- Hi-Fi
- Industry
- Appliances
- Documents
- 4
- Languages
- EN · JA
- Last added
- 2012-06-12
Start here

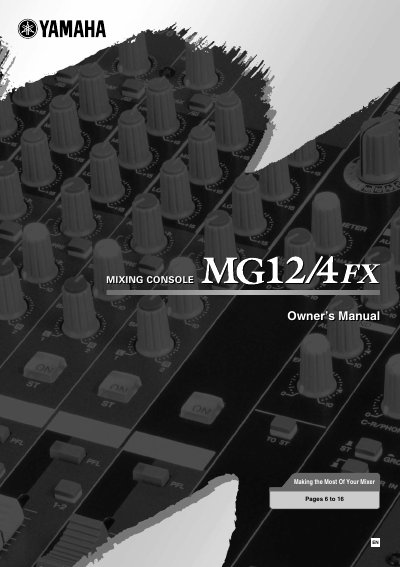

Yamaha MG12/4FX Mixing Console Owner's Manual
The Yamaha MG12/4FX is a mixing console designed for a wide range of usage environments. It features input channels suitable for microphones and line-level devices, along with high-quality built-in digital effects. The manual guides users through connecting the device, operating the controls, and utilizing external effects and monitor mixes.
Read onlineYamaha MG12 specifications
| Input channels | 16 (MG16/4) / 12 (MG12/4) |
|---|---|
| Power adaptor model | PA-20 (included) |
| Phantom power | Enabled for condenser microphones |
| Connector types | XLR, TRS phone, RCA |
All Yamaha MG12 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What voltage must be used for this device?
You must only use the specific voltage that is printed on the name plate of the device.
Which AC power adaptor is required to operate this mixer?
You must use the specified PA-20 AC power adaptor or an equivalent recommended by Yamaha.
Which power adaptor should I use with the mixer?
Use only the PA-20 adaptor that is included with the mixer.
What connector types are available on the MG16/4/MG12/4?
The mixer provides XLR, TRS phone, and RCA connectors for inputs and outputs.
What are the colour codes for the UK mains plug wires?
Blue is neutral and brown is live; connect blue to the N/black terminal and brown to the L/red terminal, avoiding the earth terminal.
What FCC class does the MG12/4FX comply with?
The product complies with FCC Regulations, Part 15 for Class B digital devices.
