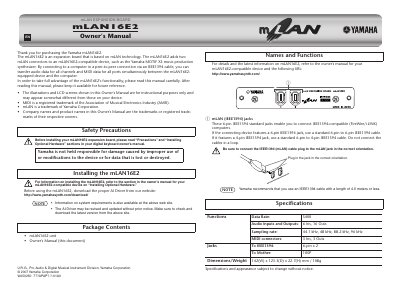

Yamaha mLAN16E2 Expansion Board Owner's Manual
The Yamaha mLAN16E2 is an expansion board designed for mMLAN16E2-compatible devices, such as the Yamaha MOTIF XS. It adds two mLAN connectors to the host device, enabling simultaneous transfer of audio data for all channels and MIDI data for all ports to a computer via a peer-to-peer IEEE1394 connection.
To use the mLAN16E2, users must download the appropriate AI Driver from the Yamaha website. The board features two 6-pin IEEE1394 jacks for connecting to computers, supporting data rates up to 400 Mbps. It provides 6 audio inputs and 16 audio outputs, with sampling rates up to 96 kHz, as well as 3 MIDI inputs and 3 MIDI outputs.
Yamaha MLAN16E2 specifications
| Data Speed | 5400 |
|---|---|
| Audio Input and Output | 6 input, 16 output |
| Sampling Rate | 44.1 kHz 48 kHz 88.2 kHz 96 kHz |
| MIDI Interface | 3 input, 3 output |
| IEEE1394 Ports | 6-pin x2 |
| Host Port | 100P |
| Dimensions (WxDxH) | 142 x 123.3 x 22.7 mm |
All Yamaha MLAN16E2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum recommended length for the IEEE 1394 cable?
Yamaha recommends using an IEEE 1394 cable with a length not exceeding 4.5 meters.
Where can I download the necessary AI drivers for mLAN16E2?
Drivers must be downloaded from the company website: http://www.yamahasynth.com/download/.
What device is the mLAN16E2 compatible with?
The mLAN16E2 is compatible with mMLAN16E2-compatible devices, such as the Yamaha MOTIF XS music production synthesizer.
What is the maximum recommended length for the IEEE1394 cable?
Yamaha recommends using an IEEE1394 cable with a length of 4.5 meters or less.
