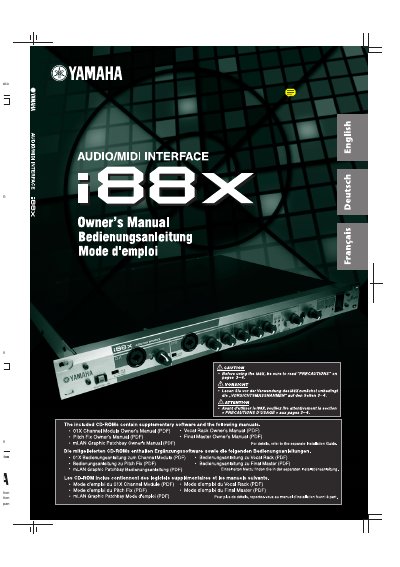

Yamaha i88X Owner's Manual
The Yamaha i88X is an Audio/MIDI Interface designed for use with computers. This document serves as the Owner's Manual, covering essential setup procedures, connection guidelines, and operational controls. It includes specific instructions for using the included CD-ROM software and navigating the device's functions.
Safety and maintenance are emphasized throughout the guide. The manual details critical precautions regarding power supply usage (specifically recommending the PA-5D adapter), proper handling of cables to prevent tripping hazards, and environmental conditions to avoid damage. It also provides step-by-step instructions for removing rubber stoppers if rack mounting is required.
Yamaha I88X specifications
| Recommended Adaptor | PA-5D or equivalent recommended by Yamaha |
|---|---|
| Extension Cord Wire Size | 18 AWG for 25' cord or less |
| Battery Life Span | approximately five years |
Source: Yamaha i88X Owner's Manual
All Yamaha I88X documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What adaptor should be used with the i88X?
You must use the specified PA-5D adaptor or an equivalent recommended by Yamaha to avoid damage.
Where is the name plate located on the i88X?
The name plate listing the model number, serial number, and power requirements is located on the top panel of the product.
What operating systems are supported by the software included on the CD-ROM?
The CD-ROM contains software for Windows and Mac OS 9, but it does not include software for Macintosh or Mac OS X.
From: Yamaha i88X/mLAN16E MY16-mLAN Plug-in Effect Installation Guide
What specific precautions must be taken regarding power when installing the mLAN applications?
You must install the software while the power to the mLAN devices is off, then turn them on after the computer displays a message.
From: Yamaha i88X/mLAN16E MY16-mLAN Plug-in Effect Installation Guide
