Start here

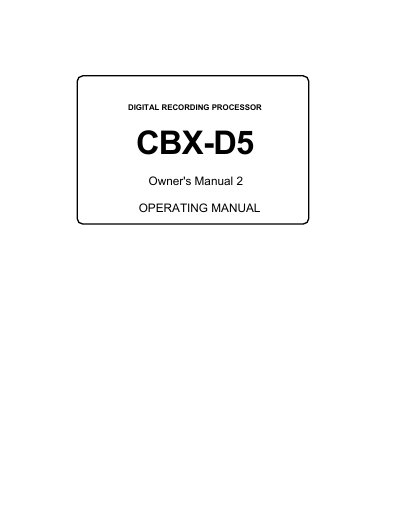

Yamaha CBX-D5 Digital Recording Processor Owner's Manual
The document serves as the operating manual for the Yamaha CBX-D5 Digital Recording Processor. It provides essential information regarding FCC compliance, product safety markings, and environmental disposal notices.
Key sections include important notices about modifying the unit or connecting cables, which may void FCC authorization. The manual also details specific safety symbols found on the device enclosure and outlines procedures for handling batteries and disposing of the product at the end of its useful life.
All Yamaha CBX-D5 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What type of rack is required for the CBX-D5?
The unit requires installation into any standard 19-inch electronic equipment rack.
Can I use screws other than the provided ones?
No, you must use only the screws provided to avoid damage to the unit.
What should I do if the CBX-D5 cannot be powered up?
Ensure the power cord is connected to a suitable AC receptacle, press the POWER switch, check any fuse in the plug, or try another power cord.
Why might the system not recognize the external hard disk?
Check if the SCSI bus is terminated correctly, ensure all devices are powered up, use standard cables only, or change the order of connected devices.
What does the lightning flash symbol on the product indicate?
It warns of uninsulated dangerous voltage inside the enclosure that may cause electrical shock.
From: Yamaha CBX-D5 Digital Recording Processor Owner's Manual
How long is the average life span of the nonrechargeable battery inside the unit?
The average life span of this type of battery is approximately five years.
From: Yamaha CBX-D5 Digital Recording Processor Owner's Manual
