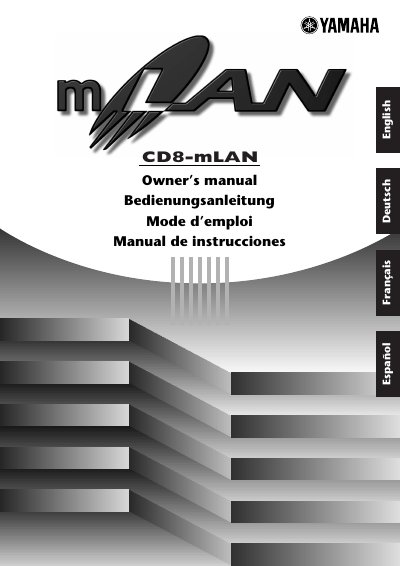

Yamaha CD8-mLAN Owner's Manual
The Yamaha CD8-mLAN is an interface card designed to provide mLAN interfacing for the Yamaha O02R or 03D digital recording consoles. It adds two mLAN connectors to these consoles, allowing for the construction of sophisticated audio and MIDI networks based on the IEEE 1394 high performance serial bus without changing physical cabling.
The document covers the package contents, names and functions of the card's jacks and LEDs, connection procedures for mLAN devices and computers, DIP switch settings, and troubleshooting via LED messages.
Yamaha CD8-MLAN specifications
| Compatible Consoles | Yamaha 02R or 03D digital recording consoles |
|---|---|
| Bus Standard | IEEE 1394 |
| Included Cable Length | 4.5 m |
Source: Yamaha CD8-mLAN Owner's Manual
All Yamaha CD8-MLAN documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the CD8-mLAN?
The CD8-mLAN is an interface card that provides mLAN interfacing for the Yamaha O02R or 03D digital recording consoles.
What is the length of the included IEEE 1394 cable?
The package includes an IEEE 1394 cable that is 4.5 m long.
What consoles is the CD8-mLAN compatible with?
The CD8-mLAN is designed to be installed in the Yamaha 02R or 03D digital recording consoles.
What is the purpose of the SERIAL I/O jack?
This jack connects the CD8-mLAN directly to a personal computer via a serial cable for using mMLAN Patchbay and mLAN Mixer on Windows.
