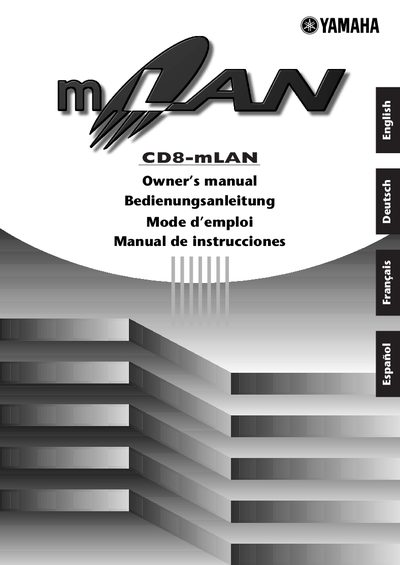

This is a CD8 user manual with mLAN function
The Yamaha CD8-mLAN is an interface card designed for the Yamaha 02R or 03D digital recording consoles. It provides mLAN interfacing, allowing the construction of sophisticated networks for audio and MIDI signals based on the IEEE 1394 high performance serial bus. The card adds two mLAN connectors to the console, enabling re-configurable networks without changing physical cabling.
| Compatible Consoles | Yamaha 02R or 03D digital recording consoles |
|---|---|
| Bus Standard | IEEE 1394 |
| Included Cable Length | 4.5 m |
The CD8-mLAN is designed to be installed in the Yamaha 02R or 03D digital recording consoles.
This jack connects the CD8-mLAN directly to a personal computer via a serial cable for using mMLAN Patchbay and mLAN Mixer on Windows.
