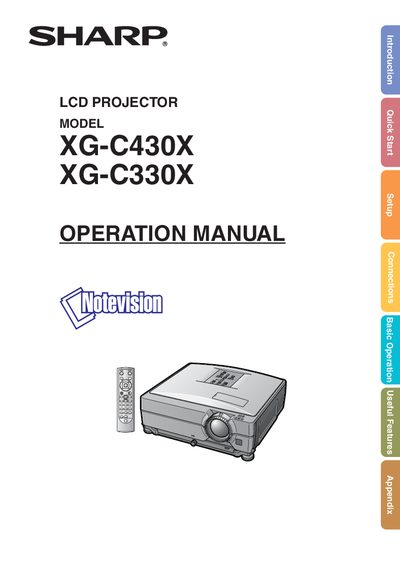

Sharp XG-C430X/XG-C330X LCD Projector User Manual
This manual covers everything needed to install and operate the Sharp XG-C430X and XG-C330X LCD projectors. It includes quick‑start steps, detailed connection diagrams, menu navigation, useful features, and a full appendix with troubleshooting and service information.
Safety warnings, lamp handling, ventilation, and environmental considerations are explained, along with specifications such as pixel count, fan behavior, and mounting limits. The document also describes how to access multilingual PDF manuals on the supplied CD‑ROM.
Sharp 30X specifications
| LCD panel pixel count | 786,432 pixels (x RGB) TFTs |
|---|---|
| Cooling fan run‑time after standby | about 90 seconds |
| Maximum tilt angle for installation | ±9 degrees |
| UK mains plug type | non‑rewireable plug with 10 A fuse |
| Lamp composition | tin‑lead solder and a pressurized lamp containing a small amount of mercury |
All Sharp 30X documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How long does the cooling fan run after the projector is put into standby?
The cooling fan continues to run for about 90 seconds after standby is engaged.
What is the maximum tilt angle allowed for mounting the projector?
The projector can be tilted up to ±9 degrees from horizontal.
How do I replace the lamp?
Refer to the “Replacing the Lamp” section on page 50 of the manual.
What plug and fuse should be used in the U.K.?
Use the supplied non‑rewireable plug with a 10 A BS 1362 fuse and keep the fuse cover fitted.
What type of plug is fitted for the UK version of the projector?
The UK version uses a non‑rewireable (moulded) plug with a 13 A fuse, approved to BS 1362 standards.
How should the lamp be replaced safely?
Turn off the projector, disconnect the AC power cord, wait at least one hour for the internal surfaces to cool, then remove the screws and replace the lamp.
