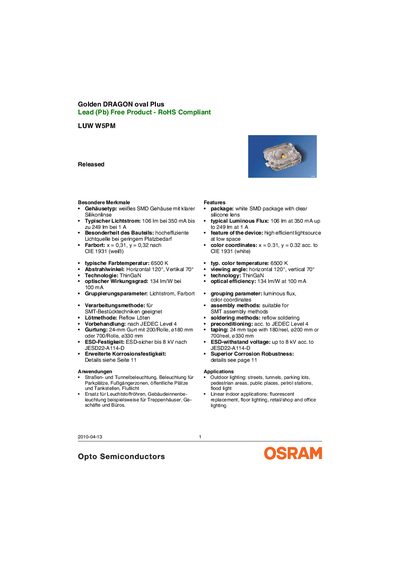

The document introduces the features and characteristics of LUW W5PM Golden DRAGON oval Plus LED lights, including appearance, luminous flux, color temperature, light angle, technology, etc.
The LUW W5PM is a lead‑free, RoHS‑compliant LED offered in a white SMD package with a clear silicone lens. It delivers a typical luminous flux of 106 lm at 350 mA up to 249 lm at 1 A, with a color temperature of 6500 K and viewing angles of 120° horizontal and 70° vertical. The device uses ThinGaN technology and achieves an optical efficiency of 134 lm/W at 100 mA.
The component is designed for SMT assembly and reflow soldering, with a recommended pre‑conditioning to JEDEC Level 4. It operates from –40 °C to 125 °C, stores within the same temperature range, and tolerates ESD up to 8 kV. Ordering is organized by brightness and chromaticity groups, with each reel containing only one group. This manual is written in German.
| Typical luminous flux | 106 lm at 350 mA up to 249 lm at 1 A |
|---|---|
| Color coordinates (x, y) | x = 0.31, y = 0.32 |
| Viewing angle | Horizontal 120°, Vertical 70° |
| Technology | ThinGaN |
| Optical efficiency | 134 lm/W at 100 mA |
| ESD withstand voltage | up to 8 kV |
Yes, the product is described as a lead‑free (Pb‑free) product that is RoHS compliant.
Typical luminous flux is 106 lm at 350 mA up to 249 lm at 1 A.
The LED is suitable for reflow soldering.
