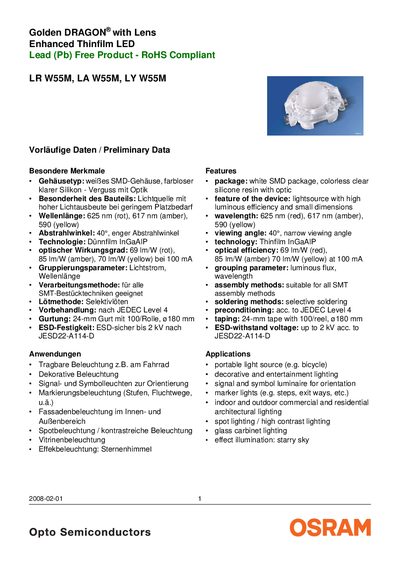

LR W55M, LA W55M, LY W55M Golden DRAGON® with Lens Enhanced Thinfilm LED is a light emitting diode from OSRAM. It has a red, amber or yellow light output color and a light output power of 69 lm/W. The beam angle is 40° and the package is white SMD package. It can be used for portable lighting, decorative lighting, signal and symbol lighting, marking lighting, building lighting, showcase lighting and special effect lighting.
The OSRAM W55M series includes three colour variants – red (LR W55M), amber (LA W55M) and yellow (LY W55M). The LEDs are supplied in a white SMD package with a clear silicone resin and feature a narrow 40° viewing angle and high optical efficiency.
The document provides detailed electrical and optical specifications, maximum ratings, ordering codes, and packaging details. It also includes handling notes such as selective soldering, ESD protection up to 2 kV, and compliance with RoHS and JEDEC Level 4 standards.
| Viewing Angle | 40° |
|---|---|
| Forward Current (max.) | 400 mA |
Selective soldering is the recommended method.
The LEDs can withstand up to 2 kV according to JESD22‑A114‑D.
Red (LR W55M), amber (LA W55M) and yellow (LY W55M) are offered.
