The quick electronic chokes QTP8 1x18 and QTP8 2x18 are suitable for 26mm diameter T8 fluorescent lamps and have a service life of 50,000 hours with a maximum failure rate of 10% at tc=75°C, up to 100,000 hours for t=65°C tc-point.

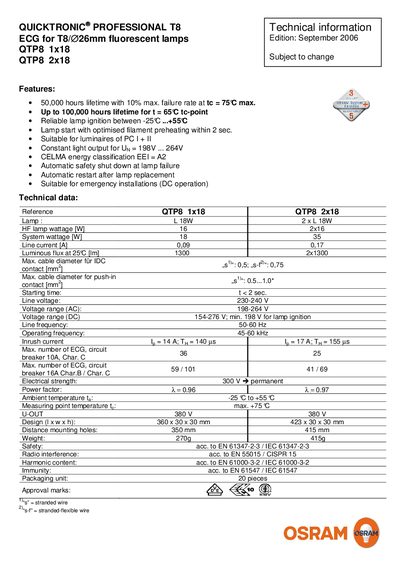

The Quicktronic® Professional T8 ECG is a ballast designed for T8/∅26 mm fluorescent lamps. It offers a long lifetime, reliable ignition over a wide voltage range, and safety functions such as automatic shutdown on lamp failure and restart after lamp replacement. The unit is suitable for both normal luminaires and emergency installations with DC operation.
Key specifications include up to 100,000 hours lifetime, AC voltage range 198‑264 V, line voltage 230‑240 V, power factor 0.96, and compact dimensions of 360 × 30 × 30 mm. Wiring details, maximum cable lengths and approval marks are also provided.
| Lifetime | Up to 100,000 hours |
|---|---|
| AC Voltage Range | 198‑264 V |
| Line Voltage | 230‑240 V |
| Weight (1x18) | 270 g |
| Max. Cable Length (1x18) | 2.0 m (pins 21‑22), 1.5 m (pins 26‑27) |
The QTP8 ECG is rated for up to 100,000 hours of operation.
It operates on an AC voltage range of 198 V to 264 V.
The maximum cable length is 2.0 m for pins 21‑22 and 1.5 m for pins 26‑27.
