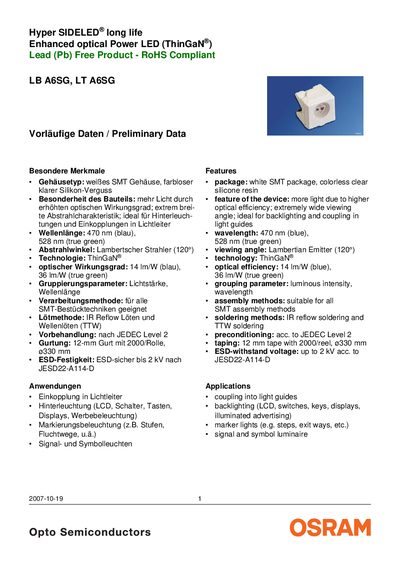

LB A6SG, LT A6SG Hyper SIDELED® long life Enhanced optical Power LED (ThinGaN®) is a product launched by Osram. Its features are higher light efficiency, wider light distribution and suitable for backlighting and light guide coupling.
The Hyper SIDELED® is a thin‑GaN LED offering high optical efficiency and a wide Lambertian viewing angle, suitable for backlighting, light‑guide coupling, and marker lighting. It is RoHS‑compliant and supplied in white SMT packages with clear silicone resin.
Key data include wavelength options (470 nm blue, 528 nm true green), optical efficiencies of 14 lm/W (blue) and 36 lm/W (green), and operating temperature range from –40 °C to +110 °C. The device is designed for standard SMT assembly, with IR reflow and TTW soldering methods.
| Wavelength (blue) | 470 nm |
|---|---|
| Wavelength (true green) | 528 nm |
| Viewing angle | 120° Lambertian |
| Optical efficiency (blue) | 14 lm/W |
| Operating temperature range | -40 °C to +110 °C |
The LED is offered in a blue version at 470 nm and a true‑green version at 528 nm.
It emits a Lambertian pattern with a 120° viewing angle.
The LED can operate from –40 °C up to +110 °C.
