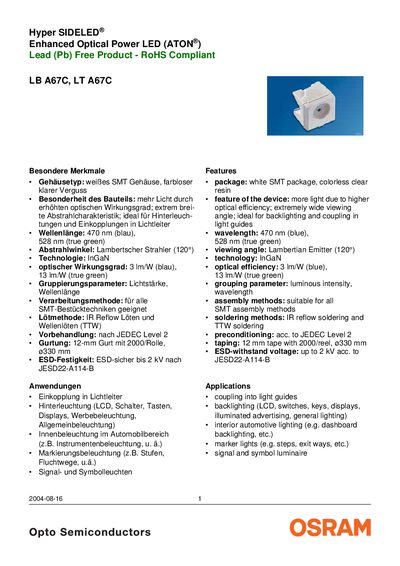

The document describes the features and characteristics of the LB A67C, LT A67C Hyper SIDELED® Enhanced Optical Power LED (ATON®) product, including its high optical efficiency, wide wavelength range, and suitability for various applications.
The LB A67C and LT A67C LEDs are Hyper SIDELED® enhanced optical power devices based on InGaN technology. They emit at 470 nm (blue) and 528 nm (true green) with a Lambertian 120° viewing angle, offering high optical efficiency of 3 Im/W (blue) and 13 Im/W (green). The components are lead‑free, RoHS‑compliant, and suitable for SMT assembly, IR reflow or wave soldering.
Typical applications include backlighting for LCDs, switches, keys, displays, advertising signage, general illumination, interior automotive lighting, marker lights, and signal/symbol luminaires. Ordering is organized by brightness and wavelength groups, with each reel containing a single group to ensure consistent performance. This manual is written in German.
| Wavelength (blue) | 470 nm |
|---|---|
| Wavelength (green) | 528 nm |
| Viewing angle | 120° (Lambertian) |
| Optical efficiency (blue) | 3 Im/W |
| Operating temperature range | -40 °C to +100 °C |
| Junction temperature max | +125 °C |
| ESD withstand voltage | 2 kV |
The LEDs operate from –40 °C up to +100 °C.
Yes, they are lead‑free and RoHS compliant.
They emit at 470 nm (blue) and 528 nm (true green).
They have a Lambertian viewing angle of 120°.
