The DS90C383A/DS90CF383A +3.3V Programmable LVDS Transmitter is a device that converts 28 bits of CMOS/TTL data into four LVDS data streams. It features high-speed transmission and low power consumption, making it suitable for flat panel display applications.

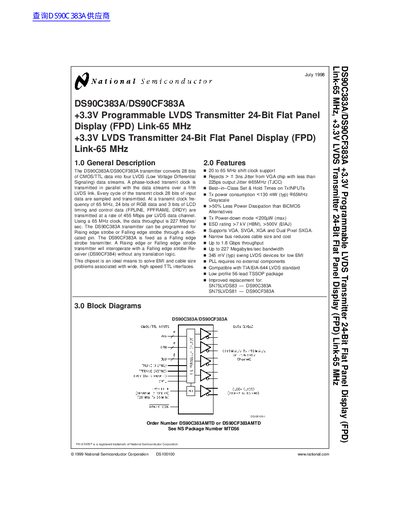

The DS90C383A/DS90CF383A is a +3.3V Programmable LVDS Transmitter designed for 24-Bit Flat Panel Display (FPD) Links. It converts 28 bits of CMOS/TTL data into four LVDS data streams and transmits a phase-locked clock in parallel. The device supports clock frequencies from 20 to 65 MHz and offers a data throughput of up to 227 Mbytes/sec at 65 MHz.
| Supply Voltage | 3.0V to 3.6V |
|---|---|
| Operating Temperature | -10°C to +70°C |
| Max Clock Frequency | 65 MHz |
| Data Throughput | Up to 227 Mbytes/sec |
| Package Type | 56-lead TSSOP |
The device supports a transmit clock frequency up to 65 MHz.
Yes, the chipset is compatible with the TIA/EIA-644 LVDS standard.
