MPLAB ICD 2 is the next advanced step for In-Circuit Debugging from Microchip Technology. It features an RS-232 interface to the host PC, real-time background debugging, compatibility with MPLAB IDE, built-in over voltage/short circuit monitor, firmware upgradeable from PC/web download, and supports low voltage debug. It also has diagnostic LED's for power, busy, and error indications.
The MPLAB ICD 2 is an In‑Circuit Debugger from Microchip Technology that connects to a host PC via an RS‑232 interface. It offers real‑time background debugging, built‑in over‑voltage/short‑circuit protection, low‑voltage debug down to 2.0 V, and diagnostic LEDs for power, busy, and error status.

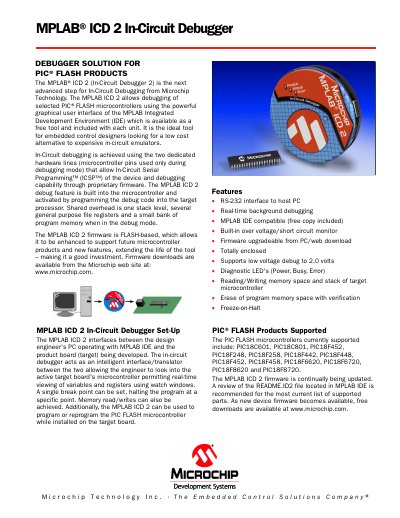

This manual describes the debugger’s features, the set‑up procedure between the PC (running MPLAB IDE) and the target board, supported PIC® FLASH devices, host system requirements, and ordering information for the ICD 2 module and related kits.
| Interface to PC | RS‑232 |
|---|---|
| Low‑voltage debug support | down to 2.0 V |
| Built‑in protection | over‑voltage/short‑circuit monitor |
| Firmware upgrade method | PC/web download |
It connects via an RS‑232 interface.
Windows 98, Windows NT 4.0, and Windows 2000 are supported.
Yes, the firmware can be upgraded from a PC or web download.
The debugger supports low‑voltage operation down to 2.0 V.
