Start here

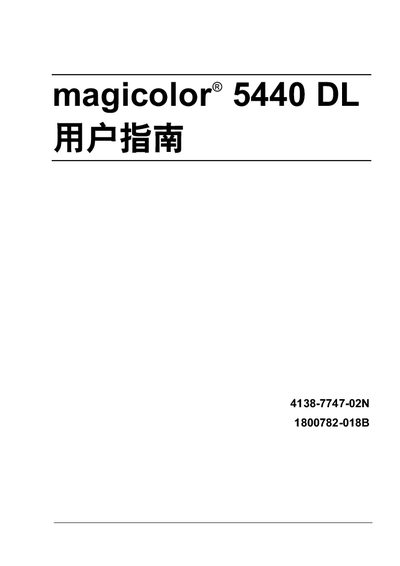

Konica Minolta 5440 DL Printer User Manual
The magicolor 5440 DL is a high‑capacity color laser printer designed for office environments. This guide introduces the printer’s hardware, required space, and basic components.
The manual covers software installation, driver configuration, control‑panel functions, direct‑print features, routine maintenance, and detailed troubleshooting steps to keep the printer running smoothly. This manual is written in Chinese.
Konica Minolta 5440DL specifications
| Print speed (A4) | 25 ppm |
|---|---|
| Print speed (Letter) | 27 ppm |
| Resolution options | 2400 × 600 dpi, 1200 × 600 dpi, 600 × 600 dpi |
| Ethernet interface | 10/100Base‑TX with TCP/IP, IPP, DHCP, BOOTP, HTTP, SNMP, SLP, LPR |
| USB interface | USB 2.0 Hi‑Speed |
| Memory | 64 MB standard, up to 576 MB optional |
| Power input | 220‑240 V AC, 50/60 Hz |
| Dimensions (W × D × H) | 425 mm × 520 mm × 440 mm |
| Supported operating systems | Windows Server 2003/XP/2000/NT4.0/ME/98SE, Macintosh OSX v10.2+ |
Source: Konica Minolta magicolor 5430DL/5440DL Printer Manual
All Konica Minolta 5440DL documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which connectivity interfaces are available on the magicolor 5430DL/5440DL?
It includes an Ethernet 10/100Base‑TX port supporting TCP/IP, IPP, DHCP, BOOTP, HTTP, SNMP, SLP, LPR, and a USB 2.0 Hi‑Speed port.
What are the physical dimensions of the printer?
The unit measures 425 mm wide, 520 mm deep, and 440 mm high.
Should I keep the packing material when moving the printer?
Yes, unless otherwise requested, keep all packing materials in case you ever need to move or ship the printer.
How do I replace the toner cartridge?
Refer to the "更换碳粉盒" section on page 71 for step‑by‑step instructions.
How can I clear a paper jam?
Use the "清除误进纸" procedures described on pages 101‑102 to remove jammed paper from the trays and transport rollers.
