Key facts
- Brand
- Konica Minolta
- Model
- 1650EN
- Industry
- Computers
- Documents
- 4
- Languages
- ZH · EN
- Last added
- 2012-03-16
Start here

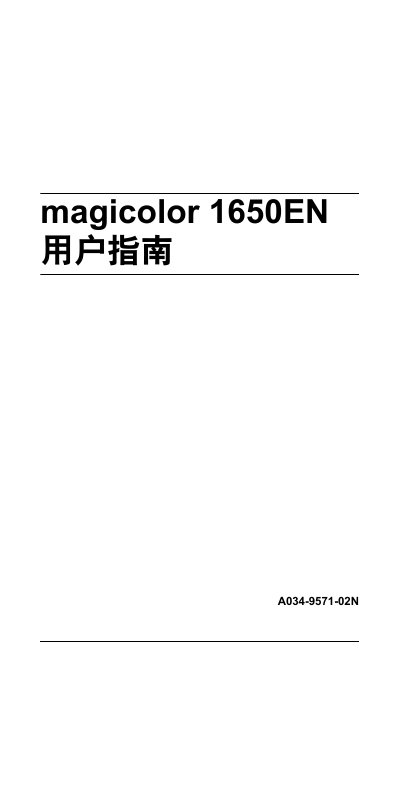

Konica Minolta magicolor 1650EN User Manual
This manual introduces the magicolor 1650EN printer, its components, and required installation steps. It covers system requirements, driver installation, and basic configuration.
Detailed sections describe paper handling, printing options, troubleshooting, consumable life, and environmental information. Technical specifications and warranty details are also included. This manual is written in Chinese.
Konica Minolta 1650EN specifications
| Color print speed | 5 pages/min |
|---|---|
| Black‑white print speed | 20 pages/min |
| Maximum print resolution | 1200 dpi × 600 dpi |
| Interfaces | USB 2.0 high‑speed, Ethernet |
| Color power consumption | 410 W |
| Black‑white power consumption | ≤560 W |
| Noise level (color mode) | ≤49 dB |
| Maximum monthly duty cycle | 35 000 pages |
| Memory | 128 MB |
All Konica Minolta 1650EN documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Can I keep printing in black and white when the color toner is empty?
Yes, you can continue printing black‑white documents as long as the black toner remains, even if the color toner is depleted.
How do I register a fax quick‑dial address?
Use PageScope Web Connection to register up to 20 common addresses and up to 220 quick‑dial numbers; groups of up to 20 can also be created.
What is the warranty period for the magicolor 1650EN?
Konica Minolta provides a one‑year warranty or the specified copy count, whichever occurs first.
How many pages can the standard toner cartridge print?
The standard toner cartridge yields about 500 pages for each of the cyan, magenta, and yellow colors.
Which operating systems are supported by the magicolor 1650EN printer?
The printer can be used in Windows, Macintosh and Linux environments.
Does the manual include Adobe color profile settings?
Yes, the manual provides an Adobe color settings section.
