Key facts
- Brand
- Konica Minolta
- Model
- magicolor 5430 DL
- Category
- Printer
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-03-16
Start here

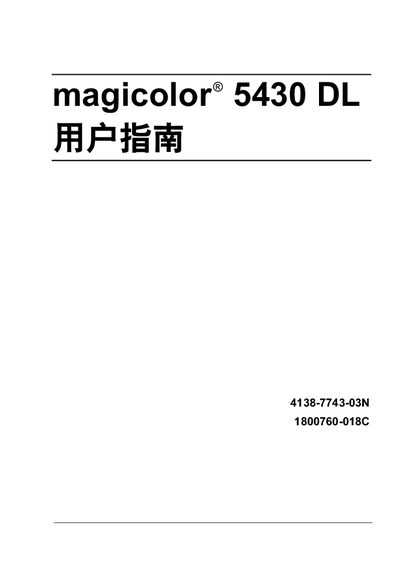

Konica Minolta magicolor 5430 DL User Manual
This manual introduces the magicolor 5430 DL printer, covering its physical layout, space requirements, and required accessories. It guides users through software installation, driver setup, and initial configuration.
Subsequent sections detail paper handling, consumable replacement, routine maintenance, and troubleshooting procedures, including how to clear paper jams and resolve print quality issues. This manual is written in Chinese.
Konica Minolta magicolor 5430 DL specifications
| Print speed (A4) | 25 ppm |
|---|---|
| Print speed (Letter) | 27 ppm |
| Resolution options | 2400 × 600 dpi, 1200 × 600 dpi, 600 × 600 dpi |
| Ethernet interface | 10/100Base‑TX with TCP/IP, IPP, DHCP, BOOTP, HTTP, SNMP, SLP, LPR |
| USB interface | USB 2.0 Hi‑Speed |
| Memory | 64 MB standard, up to 576 MB optional |
| Power input | 220‑240 V AC, 50/60 Hz |
| Dimensions (W × D × H) | 425 mm × 520 mm × 440 mm |
| Supported operating systems | Windows Server 2003/XP/2000/NT4.0/ME/98SE, Macintosh OSX v10.2+ |
Source: Konica Minolta magicolor 5430DL/5440DL Printer Manual
All Konica Minolta magicolor 5430 DL documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which connectivity interfaces are available on the magicolor 5430DL/5440DL?
It includes an Ethernet 10/100Base‑TX port supporting TCP/IP, IPP, DHCP, BOOTP, HTTP, SNMP, SLP, LPR, and a USB 2.0 Hi‑Speed port.
What are the physical dimensions of the printer?
The unit measures 425 mm wide, 520 mm deep, and 440 mm high.
How can I clear a paper jam in paper tray 1?
Follow the "清除纸盘 1 中的误进纸" instructions on page 91 to remove the jam.
Where can I find the printer’s technical specifications?
Technical specifications are listed in the "技术规格" section starting on page 136.
