Key facts
- Brand
- Gigabyte
- Model
- GA-A55M-S2HP
- Category
- Motherboard
- Industry
- Computers
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-03-13
Start here

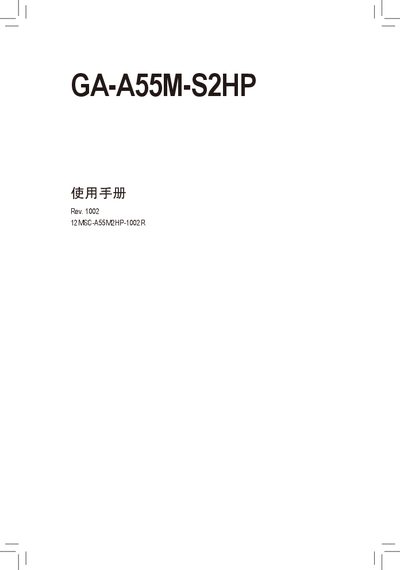

Gigabyte GA-A55M-S2HP Motherboard User Manual
This manual guides users through safe hardware installation of the GA‑A55M‑S2HP motherboard, including anti‑static measures, power‑off procedures, and connector handling. It also explains how to identify the board revision and where to find BIOS updates.
The document details the board’s features such as the FM1 CPU socket, four DDR3 DIMM slots, six SATA 3 Gb/s ports with RAID support, multiple PCI‑Express slots, integrated graphics outputs (D‑Sub, DVI‑D, HDMI), Realtek HD audio with 7.1 channel support, and up to 12 USB 2.0/1.1 ports. BIOS configuration options and power‑management settings are also covered. This manual is written in Chinese.
Gigabyte GA-A55M-S2HP specifications
| CPU Socket | FM1 |
|---|---|
| Chipset | AMD A75/A55 |
| Supported Memory Speed | DDR3 1866/1600/1333/1066 MHz |
| Graphics Outputs | D‑Sub, DVI‑D, HDMI (max 1920×1200) |
| Audio Codec | Realtek/VIA HD audio |
| LAN | Realtek RTL8111E 10/100/1000 Mbit |
| SATA Ports | 6 x SATA 3 Gb/s, RAID 0/1/10/JBOD |
| USB Ports | Up to 12 USB 2.0/1.1 ports |
All Gigabyte GA-A55M-S2HP documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What CPU socket does the GA-A55M-S2HP use?
It uses an FM1 socket that supports AMD A‑series and E2‑series processors.
How many SATA ports are available on the GA-A55M-S2HP?
The motherboard provides six SATA 3 Gb/s connectors, supporting up to six devices and RAID 0/1/10/JBOD.
How many memory modules can be installed and what is the maximum capacity?
The board has four DDR3 DIMM slots that together support up to 32 GB of memory.
Which CPU socket does the GA‑A55M‑S2HP use and what processors are supported?
It uses an FM1 socket and supports AMD A‑series processors.
What CPU socket does the GA‑A55M‑S2HP motherboard use?
It uses an FM1 socket that supports AMD A‑series processors.
