Key facts
- Brand
- Gigabyte
- Model
- GA-A55M-S2H
- Category
- Motherboard
- Industry
- Computers
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-13
Start here

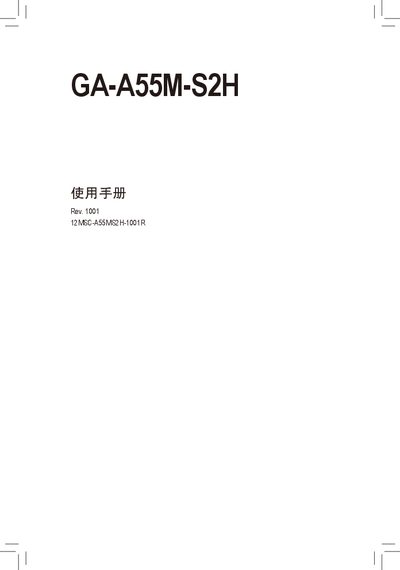

Gigabyte GA-A55M-S2H Motherboard User Manual
User Manual 44 pages · 12.6 MB · ZH
This manual covers the hardware installation steps, safety precautions, and component connections for the GA‑A55M‑S2H motherboard. It includes detailed diagrams of the board layout, slot locations, and recommended handling procedures.
The document also describes BIOS configuration, driver installation, and warranty information, helping users set up the system and obtain technical support from Gigabyte. This manual is written in Chinese.
Gigabyte GA-A55M-S2H specifications
| Supported CPU | AMD A-series processors |
|---|---|
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Memory type | DDR3 1866/1600/1333/1066 MHz |
| Audio codec | Realtek ALC889, supports 7.1‑channel HD audio |
| SATA ports | 6 × SATA 3 Gb/s, RAID 0/1/10/JBOD support |
| USB ports | 10 × USB 2.0/1.1 (6 rear, 4 via internal headers) |
All Gigabyte GA-A55M-S2H documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of CPU does the GA‑A55M‑S2H support?
It supports AMD A‑series processors.
How many memory slots are available and what is the maximum memory capacity?
The board has two DDR3 DIMM slots that can hold up to 16 GB of memory.
How many SATA ports does the GA‑A55M‑S2H motherboard have?
It provides six SATA 3 Gb/s ports that support RAID 0, RAID 1, RAID 10 and JBOD.
