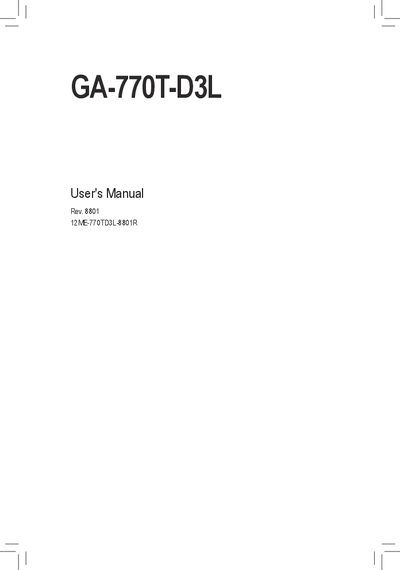

This document is the user manual for GA-770T-D3L motherboard, describing the specifications and features of the motherboard.
This manual covers everything needed to install and configure the GA-770T-D3L motherboard, including safety precautions, hardware installation steps, BIOS configuration, driver installation, and unique Gigabyte utilities. It also contains a full table of contents, box contents list, and contact information for technical support.
Technical specifications are detailed in the Product Specifications section, describing the CPU socket, chipset, memory support, audio and LAN controllers, expansion slots, storage interfaces, and USB ports. The appendix provides additional configuration guides and troubleshooting FAQs. This manual is written in Chinese.
| CPU Socket | AM3+ (supports AMD FX, Phenom II, Athlon II) |
|---|---|
| North Bridge Chipset | AMD 880G |
| South Bridge Chipset | AMD SB710 |
| Memory Slots | 2 x DDR3 DIMM, up to 8 GB total |
| Supported Memory Speed | DDR3 1666 (OC)/1333/1066 MHz |
| Audio Codec | Realtek ALC887 |
| LAN Controller | Realtek RTL8111E 10/100/1000 Mbit |
| Expansion Slots | 1 × PCIe x16, 4 × PCIe x1, 2 × PCI |
| SATA Connectors | 6 × SATA 3 Gb/s |
| USB Ports | Up to 10 × USB 2.0/1.1 |
The revision number appears as "REV: X.X", for example "REV: 1.0".
It uses an AM3+ socket that supports AMD FX, Phenom II, and Athlon II processors.
The motherboard provides up to ten USB 2.0/1.1 ports.
A Realtek RTL8111E chip offering 10/100/1000 Mbit Ethernet.
