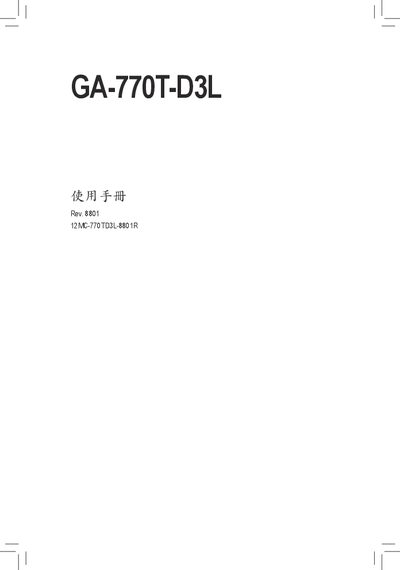

GA-770T-D3L User Manual is an official document released by Gigabyte Technology Co., Ltd., which introduces the detailed information of GA-770T-D3L motherboard's hardware installation, BIOS configuration setup and driver installation.
This manual provides detailed instructions for installing and configuring the Gigabyte GA-770T-D3L motherboard, including CPU, fan, and peripheral installation. It also covers BIOS settings, power management, and system health monitoring.
Additional sections include a parts checklist, specifications, and a troubleshooting guide to help resolve common issues and perform BIOS updates. This manual is written in Chinese.
| CPU Socket | AM3+ |
|---|---|
| Memory Type | DDR3 1666/1333/1066 MHz |
| Memory Channels | Dual Channel |
| USB Ports | 10 |
Use the Q-Flash utility within the BIOS to load and flash the new BIOS file.
Place the CPU into the AM3+ socket, secure it, then attach the CPU fan according to the mounting instructions.
