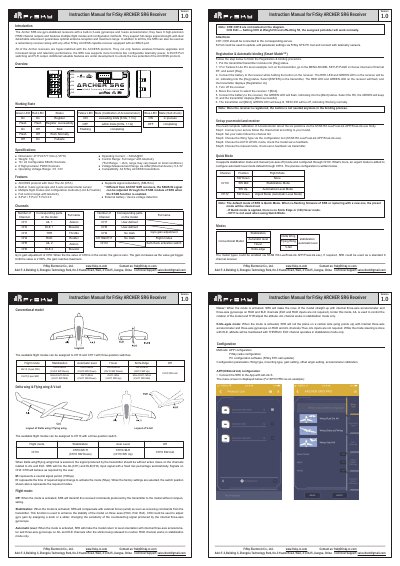

This document is the instruction manual for the ARCHER SR6 receiver. It introduces the functions and usage of the receiver.
The FrSky ARCHER SR6 is a gyro-stabilized receiver featuring a built-in 3-axis gyroscope and 3-axis accelerometer. It provides 6 high-precision PWM channel outputs and supports multiple flight modes, including stabilization, automatic level, hover, and knife-edge, configurable via switches on channels 10 and 11.
| Dimension | 47.5*20.5*11mm (L*W*H) |
|---|---|
| Weight | 13g |
| Configurable SBUS Channels | 16 / 24 |
| PWM Channels | 6 High-precision |
| Operating Voltage Range | 3.5 -10V |
| Operating Current | ≤60mA@5V |
| Control Range | Full range* with telemetry |
| Voltage Measurement Range via AIN2 | 0-3.3V |
The available flight modes can be assigned to CH10 and CH11 with three-position switches.
Yes, if required, the SR6 could be used as a standard 6 channel receiver.
The default mode of SR6 is Quick Mode.
