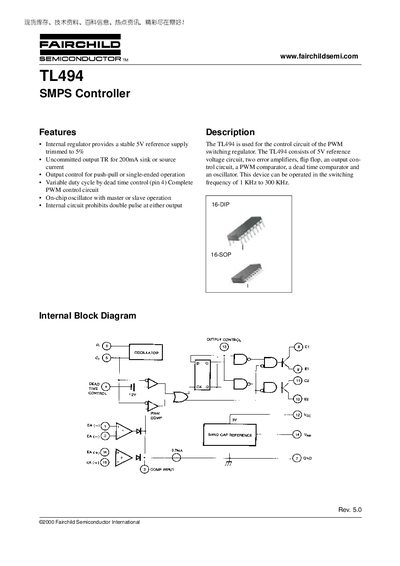

Fairchild TL494 SMPS Controller Datasheet
The TL494 is a PWM controller for switching regulators, featuring an internal 5 V reference, uncommitted output driver, error amplifiers, and an on‑chip oscillator that can operate in master or slave mode. It supports variable duty‑cycle control from 1 kHz to 300 kHz and can drive push‑pull or single‑ended topologies.
The datasheet lists absolute maximum ratings, electrical characteristics, mechanical dimensions for 16‑DIP and 16‑SOP packages, ordering information, and a life‑support policy disclaimer. A typical step‑down converter application circuit is also shown.
Fairchild TL494 specifications
| Supply Voltage (VCC) max | 42 V |
|---|---|
| Output Current max | 250 mA |
| Operating Temperature Range | 0 °C to +70 °C |
| Oscillation Frequency range | 1 kHz to 300 kHz |
All Fairchild TL494 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the TL494?
The TL494 can tolerate a supply voltage up to 42 V.
What is the operating temperature range of the TL494?
It operates from 0 °C to +70 °C.
What is the maximum supply voltage for the TL494?
The TL494 can tolerate a supply voltage up to 42 V.
What temperature range can the TL494 operate in?
It operates from 0 °C to +70 °C.
