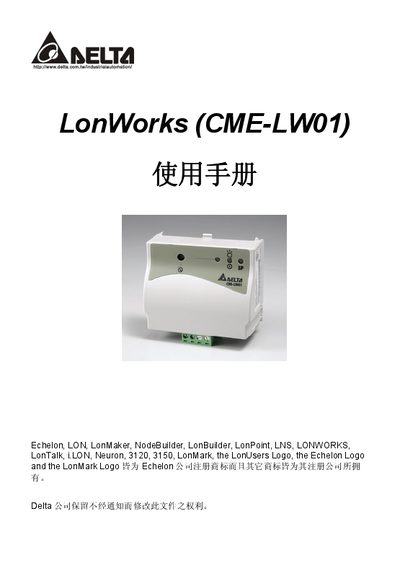

Echelon CME-LW01 LonWorks Communication Interface User Manual
This document describes the CME-LW01 communication interface that converts Modbus and LonTalk signals for integration with LonWorks networks. It includes hardware dimensions, electrical specifications, and wiring details.
The guide walks users through installation on a VFD, network initialization, variable functions, and LED status indicators, helping technicians set up and maintain the device in industrial automation environments. This manual is written in Chinese.
Delta CME-LW01 specifications
| Power supply | 16‑30 VDC, 750 mW |
|---|---|
| Modbus communication | ASCII, 9600 bps, 7‑N‑2 |
| LonTalk speed | 78 kbps (FTT‑10A) |
| LonTalk connector | 4‑pin terminal, 28‑12 AWG, strip 7‑8 mm |
| RS‑485 port | 8‑pin RJ‑45 |
Source: Delta CME-LW01 LonWorks Communication Module Instruction Sheet
All Delta CME-LW01 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How is the CME‑LW01 configured?
CME‑LW01 must be configured via a LonWorks network tool before it can operate; no separate address setting is required.
From: Delta CME-LW01 LonWorks Communication Module Instruction Sheet
What do the LED colors indicate?
A green Power LED means normal power; a red Power LED indicates a power or program fault. A green SP LED shows normal communication, blinking means the device is reading default settings, and red indicates a communication error. The Service LED blinks when unconfigured, is off when configured, and stays solid on for hardware faults.
From: Delta CME-LW01 LonWorks Communication Module Instruction Sheet
What power supply voltage is required for the CME-LW01?
The module requires a supply voltage of 16 to 30 VDC with a power consumption of 750 mW.
