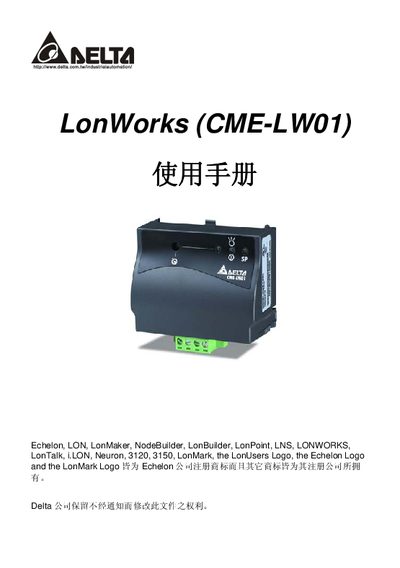

This document is the user manual for Echelon's LonWorks (CME-LW01), including installation, network configuration, and variable functionality.
This guide provides step‑by‑step instructions for installing and configuring the AELTA CME‑LW01 interface module. It covers hardware mounting, wiring connections, and initial configuration of the Modbus and LonWorks communication settings.
The document also describes the LED status indicators (Power, SP, Service) and offers troubleshooting tips for common issues such as communication failures and LED fault conditions. This manual is written in Chinese.
| LonTalk communication mode | Free topology, 78 Kbps (FTT‑10A) |
|---|---|
| Wire gauge | 28‑12 AWG |
| Wire strip length | 7‑8 mm |
