Start here

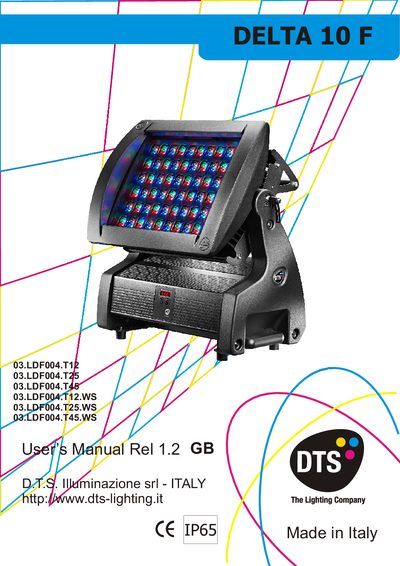

DTS DELTA 10 F User Manual
The DELTA 10 F is an IP65‑rated RGBW colour changer designed for indoor and outdoor use. It features 240 LEDs (60 each of red, green, blue and white) delivering up to 19 500 lumens and 7 000 lux at 5 m with spot lenses. The unit operates on a full‑range AC supply (90‑260 V, 50‑60 Hz) and can be chained with up to 32 units.
The manual covers essential safety warnings, warranty information, and detailed installation steps, including mounting options, safety cable usage, and protection against liquids. It also explains DMX signal connection, firmware updating, and programming of colour sequences via the built‑in OLED interface.
DELTA 10 F specifications
| LED count | 240 (60 Red, 60 Green, 60 Blue, 60 White) |
|---|---|
| Total luminous flux | 19 500 lumens |
| Maximum lux | 7 000 lux at 5 m (spot lenses) |
| IP rating | IP65 |
| Operating voltage | 90‑260 V, 50‑60 Hz |
| Power consumption | 480 W (all supported voltages) |
| Operating temperature | -10 °C to +40 °C |
| Weight | 18 kg |
| Colour temperature range | 2 800 K – 6 500 K |
Source: DTS DELTA 10 F User Manual
All DELTA 10 F documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What IP protection rating does the DELTA 10 F have?
The DELTA 10 F has a full IP65 protection level.
What voltage range can the DELTA 10 F operate on?
It operates on AC 90‑260 V, 50‑60 Hz.
What voltage range does the DELTA 10 F ZOOM support?
It operates from 90 V to 260 V AC at 50 Hz or 60 Hz.
How many LEDs are inside the fixture and what colours are they?
The unit contains 240 LEDs, with 60 each of red, green, blue and white.
