Key facts
- Brand
- Delta
- Model
- IFD9506
- Documents
- 2
- Languages
- ZH · EN
- Last added
- 2012-04-09
Start here

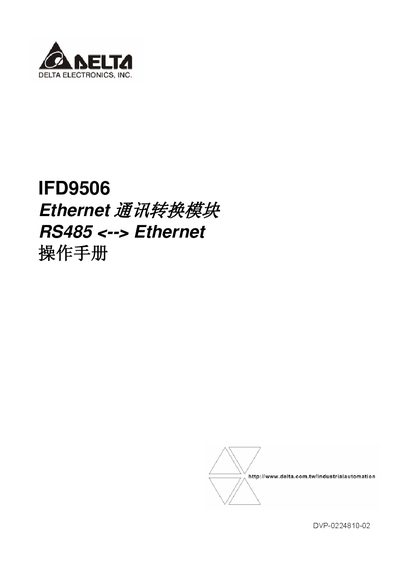

AELTA IFD9506 Ethernet communication transform module RS485 -- Ethernet Manual
The IFD9506 is an Ethernet communication module that converts between Ethernet and RS‑485/RS‑232 interfaces. It supports Modbus TCP in both master and slave modes and offers digital input points that can trigger email alerts. The device includes RJ‑45, RJ‑11, and Mini‑DIN connectors and complies with IEC electromagnetic compatibility standards.
This manual covers functional specifications, external interfaces, wiring diagrams, safety precautions, installation steps, basic and advanced configuration (including IP address setup, baud rates, and Modbus settings), and troubleshooting guidance for the IFD9506 module. This manual is written in Chinese.
Delta IFD9506 specifications
| Ethernet ports | 1 RJ‑45 port |
|---|---|
| Ethernet transmission speed | 10/100 Mbps |
| Power supply voltage | 24 VDC |
| Power consumption | 3 W |
| Operating temperature range | 0 °C – 55 °C |
| Weight | 140 g |
Source: Delta IFD9506 Ethernet Communication Module Application Manual
All Delta IFD9506 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precaution must be taken before wiring the IFD9506?
Switch off the power before wiring and install the module in an enclosure free of dust, humidity, electric shock and vibration.
From: Delta IFD9506 Ethernet Communication Module Application Manual
How many digital input contacts does the IFD9506 have?
The IFD9506 has three digital input contacts.
From: Delta IFD9506 Ethernet Communication Module Application Manual
