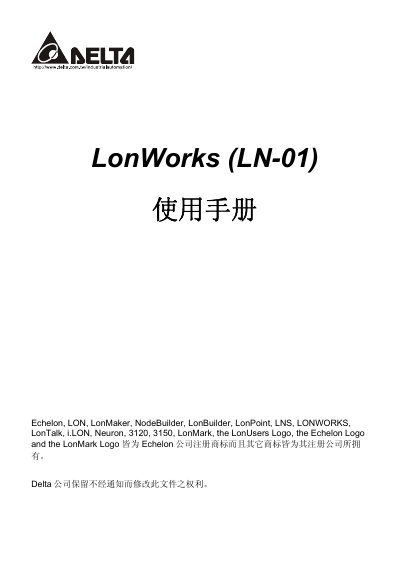

Echelon LN-01 User Manual
User Manual 22 pages · 591 KB · ZH
The LN-01 is a Modbus‑to‑LonWorks communication interface that enables Delta VFDs to connect to a LonWorks network. It contains a Neuron chip and supports RS‑485 and LonTalk connections.
The manual covers product overview, electrical specifications, installation on DIN rail, wiring details, network initialization, variable function tables, and error‑LED troubleshooting, helping users configure and maintain the device. This manual is written in Chinese.
Delta LN-01 specifications
| Input power | 16-30VDC, 700 mA |
|---|---|
| Modbus baud rate | 9600 bps |
| LonTalk data rate | 78 Kbps |
| RS‑485 connector | 6 pins with RJ‑11 |
| Wire gauge for LonTalk | 28‑12 AWG |
Source: Echelon LN-01 User Manual
All Delta LN-01 documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Other documents 1
Questions answered in these manuals
What input voltage range does the LN-01 require?
The LN-01 operates from a 16‑30 VDC power supply.
How can I tell that the LN-01 has been successfully configured?
After successful configuration the Power LED and SP LED are solid green and the Service LED is off.
