Start here

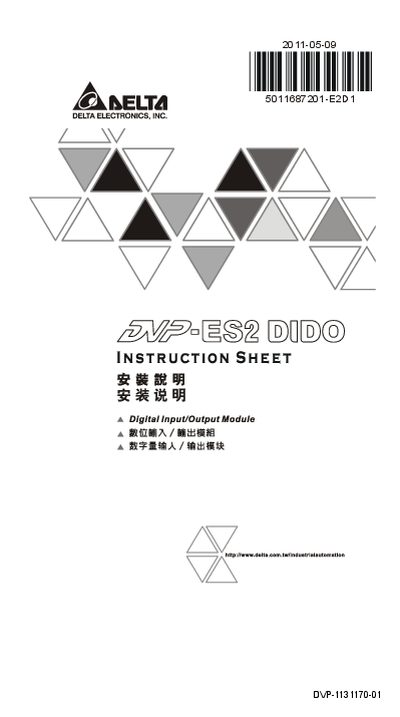

Delta Electronics DVP-ES2 DIDO User Manual
The DVP-ES2 DIDO is an open‑type digital input/output module designed for use with the DVP-ES2 series PLC. It must be installed in a dust‑free, humidity‑controlled enclosure and secured against unauthorized operation.
The document details power requirements, input and output electrical characteristics, mounting options (direct or DIN‑rail), wiring guidelines, and safety precautions such as grounding and protection circuits.
Delta DVP-ES2 specifications
| AC power supply voltage range (MPU) | 100 ~ 240 VAC |
|---|---|
| DC power supply for I/O points | 24 VDC |
| Output voltage (Relay output) | Below 250 VAC, 30 VDC |
| Output current (Resistive load) | 2 A per point (5 A per COM) |
| Insulation resistance | >5 MΩ at 500 VDC |
| Operating temperature | 0 °C ~ 55 °C |
| Storage temperature | -25 °C ~ 70 °C |
| Grounding wire size | ≥1.6 mm² copper |
All Delta DVP-ES2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in these manuals
What AC voltage range should be used for the DVP-ES2 series MPU?
The MPU accepts an AC supply of 100 ~ 240 VAC.
What grounding wire is recommended for the PLC?
A copper grounding wire of at least 1.6 mm² (or larger) should be used.
What is the recommended AC power‑supply voltage range for the DVP‑ES2?
The PLC accepts an AC input of 100 ~ 240 VAC (50/60 Hz).
How long does the PLC keep running after a sudden power loss?
The MPU continues to run for up to 10 ms after the power is cut off.
How can calculation error flags be cleared?
Use the M1067 and M1068 registers to clear calculation error flags and maintain their state.
