CME-LW01 is used for the communication interface between Modbus and LonTalk. CME-LW01 needs to be configured via LonWorks network tool first, so that it can perform the function on LonWorks network. No need to set CME-LW01 address. This manual provides instructions for the installation and setup for CME-LW01 that is used to communicate with Delta VFD-E (firmware version of VFD-E should conform with CME-LW01 according to the table below) via LonWorks Network. The content of this instruction sheet may be revised without prior notice. Please consult our distributors or download the most updated version at http://www.delta.com.tw/industrialautomation.
The Delta CME-LW01 is a communication interface that connects Modbus devices to a LonWorks network. It must be configured with a LonWorks network tool before it can operate on the network.

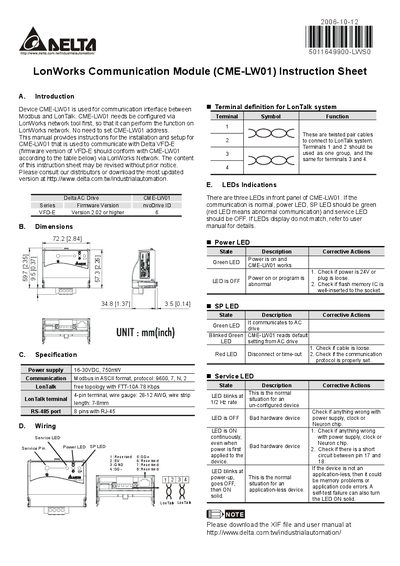

The sheet covers dimensions, electrical specifications, LED status meanings, wiring diagrams, pin definitions, and troubleshooting steps to help users install and maintain the module correctly.
| Power Supply | 16-30 VDC, 750 mW |
|---|---|
| Modbus Communication | ASCII 9600,7,N,2 |
| LonTalk Topology Speed | FTT-10A78 Kbps |
The module requires a supply voltage of 16 to 30 VDC with a power consumption of 750 mW.
