Start here

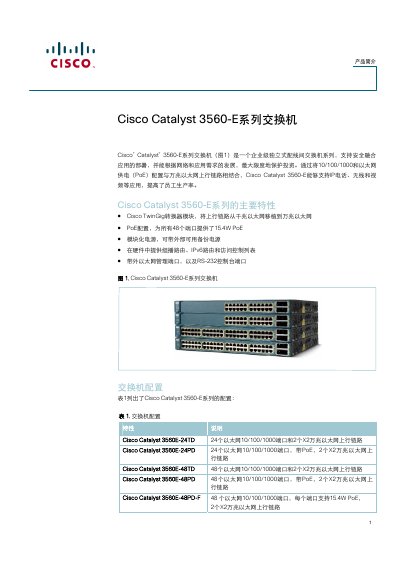

Cisco Catalyst 3560‑E Series Switches Product Data Sheet
The Catalyst 3560‑E series provides a range of 24‑ and 48‑port Ethernet switches with 10/100/1000 Mbps ports, optional PoE, and two X2 10 Gbps TwinGig uplink ports. The switches support IP Base or IP Services feature sets, offering advanced routing, multicast, IPv6, QoS, and security capabilities such as ACLs, 802.1x, and MAC‑based authentication.
Power options include modular AC power supplies (1150 W, 750 W, 265 W) and the Cisco RPS 2300 redundant power system for high availability. Detailed specifications cover a 128‑Gbps switching matrix, up to 101.2 Mpps forwarding, 128 MB DRAM, 64 MB flash, and support for up to 1005 VLANs. Physical dimensions are 1.75 × 17.5 × 18.1 in (24‑port) or 1.75 × 17.5 × 21.7 in (48‑port) with weights ranging from 17.9 lb to 20.9 lb. This manual is written in Chinese.
Cisco Catalyst 3560 specifications
| Switching matrix | 128 Gbps |
|---|---|
| Forwarding rate (48‑port model) | 101.2 Mpps |
| Memory | 128 MB DRAM, 64 MB flash |
| Port count | 48 × 10/100/1000 Mbps |
| PoE power per port | 15.4 W |
| Power supply option (max) | 1150 W AC with 740 W PoE |
| Dimensions (48‑port) | 1.75 × 17.5 × 18.1 in |
| Weight (48‑port PoE) | 20.9 lb |
Source: Cisco Catalyst 3560‑E Series Switches Product Data Sheet
All Cisco Catalyst 3560 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What uplink options are available for the Catalyst 3560‑E?
A TwinGig module converts one X2 10 Gbps interface into two 1 Gbps SFP uplink ports.
From: Cisco Catalyst 3560‑E Series Switches Product Data Sheet
What is the forwarding capacity of the 48‑port Catalyst 3560‑E model?
The 48‑port model forwards traffic at up to 101.2 Mpps.
From: Cisco Catalyst 3560‑E Series Switches Product Data Sheet
How many VLANs can a Catalyst 3560 switch support?
Each Catalyst 3560 model supports up to 1005 VLANs.
What is the PoE power budget for the Catalyst 3560 series?
The series provides a total PoE budget of 370 W, with Class 3 devices receiving up to 15.4 W and Class 2 devices up to 7.3 W.
